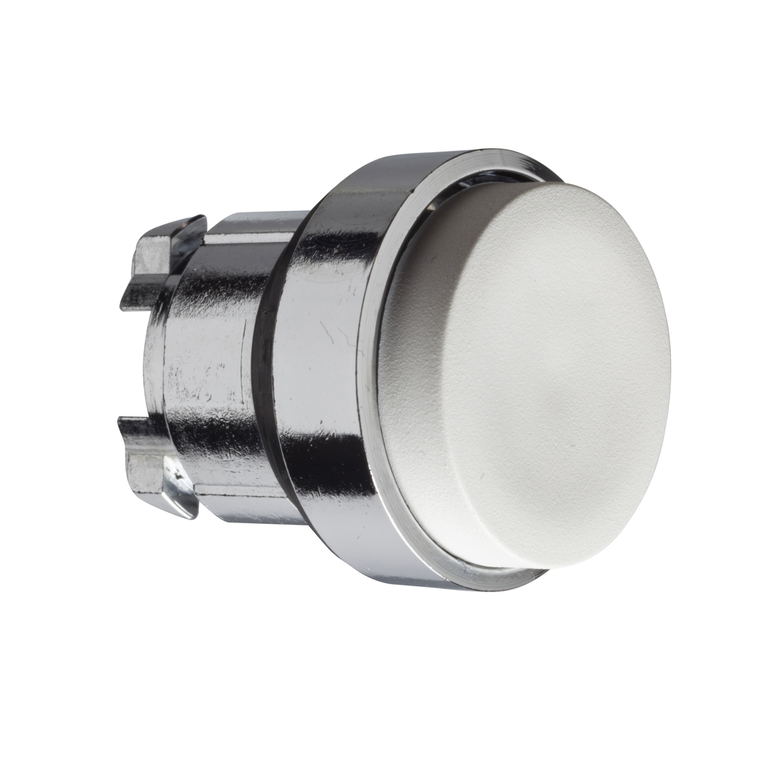

Schneider Electric ZB4BL1 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BL1 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BL1

UPC:

3.38911E+12

MPN:

Condition:

New

Bezel Material:

chromium plated metal

Sale Per Indivisible Quantity:

1

Product Certifications:

CSA || DNV || LROS (Lloyds register of shipping) || BV || GL || UL Listed

Mechanical Durability:

10000000 cycles

Protective Treatment:

TH

Cad Overall Height:

29 mm

Warranty:

18 months

Mounting Diameter:

22 mm

Standards:

CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1

Environmental Disclosure:

ENVPEP1808008EN

Type Of Operator:

spring return

Ambient Air Temperature For Storage:

-40-70 °C

Ik Degree Of Protection:

IK06 IEC 50102

Device Presentation:

basic element

China Rohs Regulation:

X

Reach Free Of Svhc:

Yes

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Head Type:

standard

Overvoltage Category:

class I IEC 60536

Device Short Name:

ZB4

Range Of Product:

Harmony XB4

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Operator Profile:

white projecting, unmarked

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

ENVEOLI1808008EN

Product Or Component Type:

head for non-illuminated push-button

Sustainable Offer Status:

Green Premium product

Cad Overall Width:

29 mm

Cad Overall Depth:

33 mm

Rohs Exemption Information:

Yes

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Operation:

-40-70 °C

Shape Of Signaling Unit Head:

round
