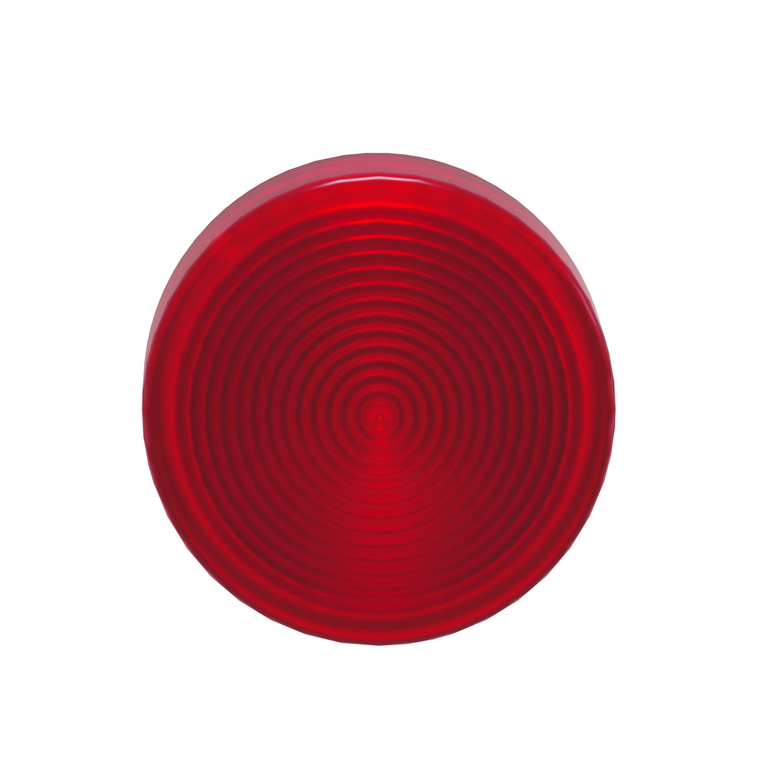

Schneider Electric ZB4BV043S Pilot Light Head
Schneider Electric
$5.59
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, grooved lens head for pilot light with universal LED is red. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer
- Net Weight:
- 0.026 kg
- Ik Degree Of Protection:
- IK06 IEC 50102
- Sale Per Indivisible Quantity:
- 1
- Mounting Diameter:
- 22 mm
- Warranty:
- 18 months
- Product Or Component Type:
- head for pilot light
- Cad Overall Depth:
- 30 mm
- Product Compatibility:
- universal LED
- Bezel Material:
- chromium plated metal
- Cap/Operator Or Lens Colour:
- red
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Height:
- 29 mm
- Reach Free Of Svhc:
- Yes
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Range Of Product:
- Harmony XB4
- China Rohs Regulation:
- X
- Device Short Name:
- ZB4
- Sustainable Offer Status:
- Green Premium product
- Operator Additional Information:
- with grooved lens
- Environmental Disclosure:
- ENVPEP2308026EN
- Rohs Exemption Information:
- Yes
- Overvoltage Category:
- class I IEC 60536
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI2308026EN
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Head Type:
- standard
- Device Presentation:
- basic element
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Environmental Characteristic:
- high ambient lighting environment
