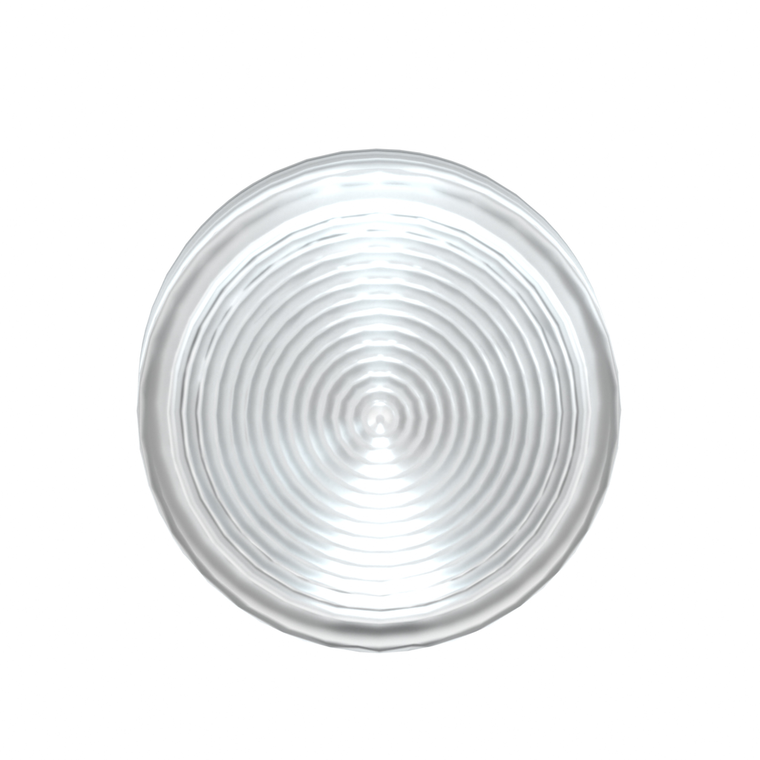

Schneider Electric ZB4BV07 Pilot Light Head
Schneider Electric
$5.59
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, plain lens clear head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Cad Overall Height:
- 29 mm
- Cad Overall Width:
- 29 mm
- Operator Additional Information:
- with plain lens
- Cap/Operator Or Lens Colour:
- clear
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class I IEC 60536
- Head Type:
- standard
- Device Presentation:
- basic element
- Ambient Air Temperature For Operation:
- -40-55 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Free Of Svhc:
- Yes
- Product Compatibility:
- BA 9s
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Toxic Heavy Metal Free:
- Yes
- Standards:
- IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
- Range Of Product:
- Harmony XB4
- Sale Per Indivisible Quantity:
- 1
- Circularity Profile:
- ENVEOLI2308026EN
- Electrical Composition Code:
- P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
- Cad Overall Depth:
- 31 mm
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Product Or Component Type:
- head for pilot light
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Bezel Material:
- chromium plated metal
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB4
- Mounting Diameter:
- 22 mm
- Environmental Disclosure:
- ENVPEP2308026EN
- Net Weight:
- 0.027 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ik Degree Of Protection:
- IK06 IEC 50102
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
