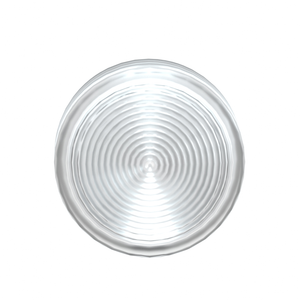

Schneider Electric ZB4BV07S Neon Pilot Light Head
Schneider Electric
$8.38
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, grooved lens clear head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1808008EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Additional Information:
- with grooved lens
- Device Presentation:
- basic element
- Reach Free Of Svhc:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 50102
- Cap/Operator Or Lens Colour:
- clear
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Product Or Component Type:
- head for pilot light
- Electrical Composition Code:
- P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
- Device Short Name:
- ZB4
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-1
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Bezel Material:
- chromium plated metal
- Sale Per Indivisible Quantity:
- 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Net Weight:
- 0.027 kg
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class I IEC 60536
- Warranty:
- 18 months
- Cad Overall Width:
- 29 mm
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-55 °C
- Range Of Product:
- Harmony XB4
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Environmental Disclosure:
- ENVPEP1808008EN
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Environmental Characteristic:
- high ambient lighting environment
- Product Compatibility:
- BA 9s
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Depth:
- 31 mm
- Mounting Diameter:
- 22 mm
- Cad Overall Height:
- 29 mm
