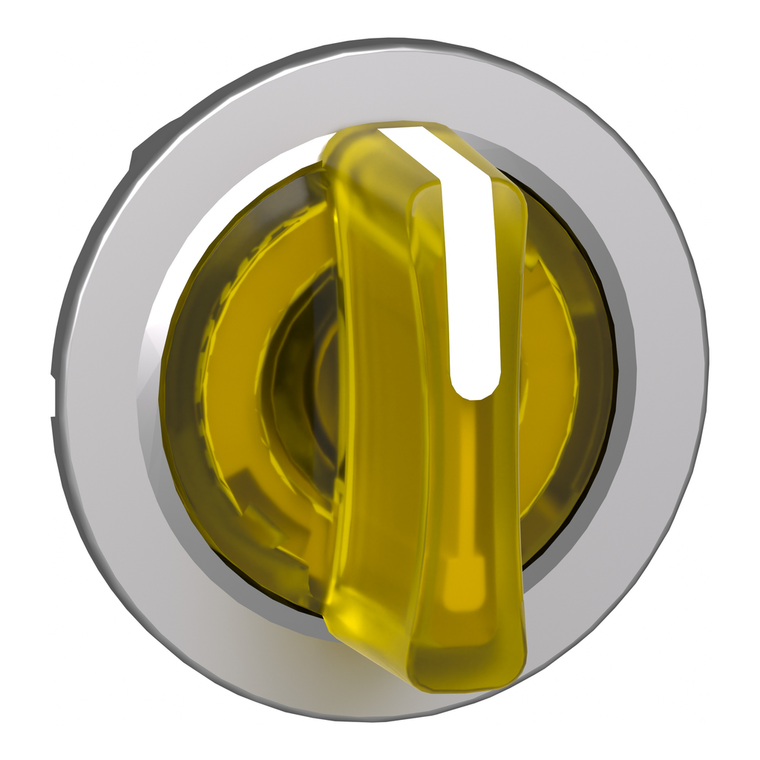

Schneider Electric ZB4FK1583 Head for illuminated selector switch, Harmony XB4, metal, yellow handle, 30mm, universal LED, 3 positions, to center

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB4FK1583 Head for illuminated selector switch, Harmony XB4, metal, yellow handle, 30mm, universal LED, 3 positions, to center

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4FK1583

UPC:

MPN:

ZB4FK1583

Condition:

New

Mercury Free:

Yes

Overvoltage Category:

class I IEC 60536

Protective Treatment:

TH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1

Toxic Heavy Metal Free:

Yes

Device Short Name:

ZB4F

China Rohs Regulation:

X

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Width:

36.6 mm

Cap/Operator Or Lens Colour:

yellow

Warranty:

18 months

Ambient Air Temperature For Operation:

-40-70°C

Ik Degree Of Protection:

IK04 conforming to IEC 50102

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

UL Listed || CSA || CCC || EAC

Rohs Exemption Information:

Yes

Mounting Diameter:

30.5 mm

Type Of Operator:

to centre spring return

Mechanical Durability:

500000 cycles

Cad Overall Width:

36.6 mm

Operator Profile:

yellow standard handle

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Net Weight:

0.078 kg

Height:

36.6 mm

Weight:

0.078 kg

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Device Presentation:

basic element

Reach Free Of Svhc:

Yes

Cad Overall Height:

36.6 mm

Range Of Product:

Harmony XB4

Ambient Air Temperature For Storage:

-40-70°C

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

Sale Per Indivisible Quantity:

1

Cad Overall Depth:

47 mm

Product Compatibility:

universal LED

Bezel Material:

chromium plated metal

Product Or Component Type:

head for illuminated selector switch

Head Type:

built-in-flush

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Operator Position Information:

3 positions +/- 45°

Shape Of Signaling Unit Head:

round

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Country of Origin:

France

Resistance To High Pressure Washer:

7000000 Pa 55°C 0.1 m
