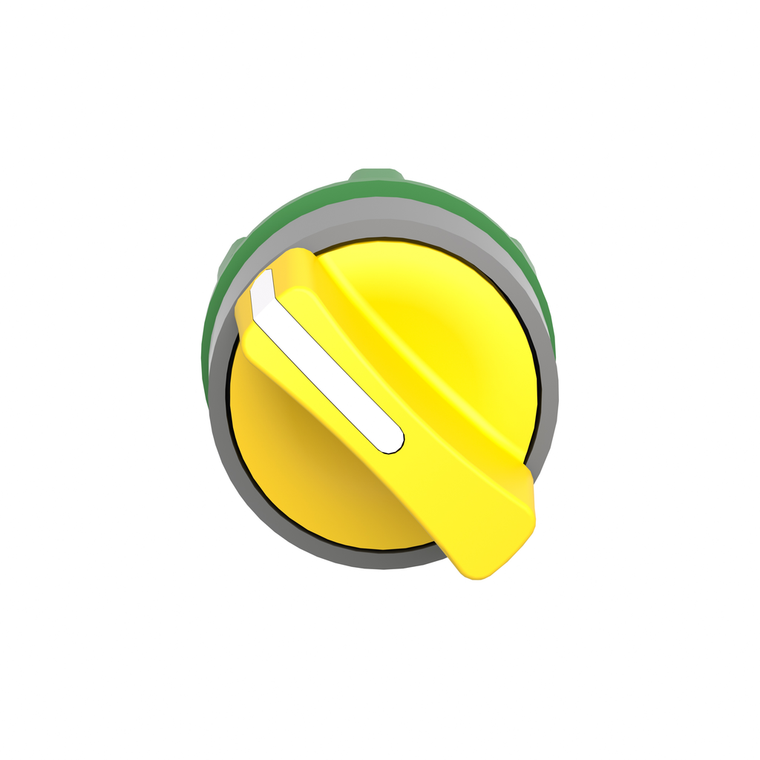

Schneider Electric ZB5AD205C0 Selector Operating Head
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Operator Position Information:
- 2 positions 90°
- Ip Degree Of Protection:
- IP67 IEC 60529
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Net Weight:
- 0.017 kg
- Product Certifications:
- UL Listed || GL || LROS (Lloyds register of shipping) || DNV || CSA || BV
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK06 IEC 50102
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 46 mm
- Reach Free Of Svhc:
- Yes
- Device Presentation:
- basic element
- Type Of Operator:
- stay put
- Overvoltage Category:
- class II IEC 60536
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- standard
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Height:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Profile:
- yellow standard handle
- Protective Treatment:
- TH
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Product Or Component Type:
- head for selector switch
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- plastic colour plated grey
- Mechanical Durability:
- 1000000 cycles
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Width:
- 29 mm
