Schneider Electric

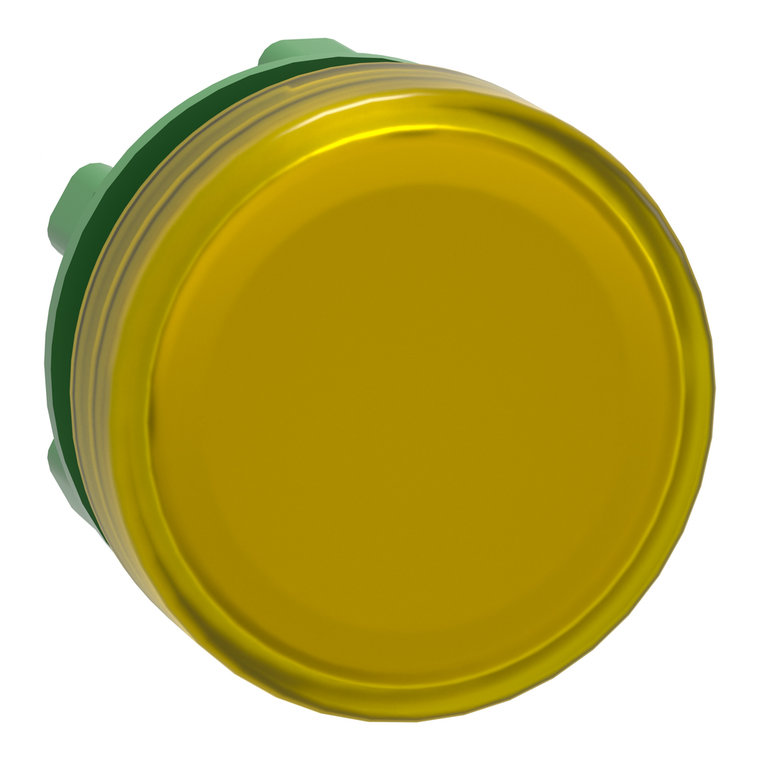

Schneider Electric ZB5AV083 Head for pilot light, Harmony XB5, plastic, yellow, 22mm, universal LED, plain lens

(No reviews yet) Write a Review
SKU:
ZB5AV083
MPN:
ZB5AV083
Condition:
New
Mercury Free:
Yes
Product Compatibility:
universal LED
Net Weight:
0.017 kg
Product Or Component Type:
head for pilot light
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Cad Overall Width:
29 mm
Weight:
0.017 kg
Electrical Composition Code:
P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
Range Of Product:
Harmony XB5
Rohs Exemption Information:
Yes
Mounting Diameter:
22 mm
Operator Additional Information:
with plain lens
Standards:
EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Bezel Material:
dark grey plastic
Device Short Name:
ZB5
Cad Overall Height:
29 mm
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Toxic Heavy Metal Free:
Yes
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Operation:
-40-70°C
Cad Overall Depth:
31 mm
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-40-70°C
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Protective Treatment:
TH
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Cap/Operator Or Lens Colour:
yellow
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shape Of Signaling Unit Head:
round
China Rohs Regulation:
X
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Overvoltage Category:
class II IEC 60536
Device Presentation:
basic element
Height:
29 mm
Country of Origin:
France
Circularity Profile:
ENVEOLI2308027EN
Environmental Disclosure:
ENVPEP2308027EN
Ip Degree Of Protection:
IP66 IEC 60529 || IP67
Ik Degree Of Protection:
IK05 conforming to IEC 50102
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Width:
29 mm
$7.60

Description

This Harmony XB5, plain lens head for pilot light with universal LED is yellow. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
