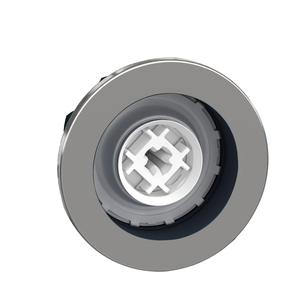

Schneider Electric ZB5FA0C0 Flush Mounted Pb Head Without Caps
Schneider Electric
$8.84
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Product Or Component Type:
- head for non-illuminated push-button
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Short Name:
- ZB5
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TH
- Overvoltage Category:
- class II IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ik Degree Of Protection:
- IK03 IEC 50102
- Cad Overall Depth:
- 30 mm
- Range Of Product:
- Harmony XB5
- Net Weight:
- 0.028 kg
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Type Of Operator:
- spring return
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || UL Listed || BV || GL || DNV
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Cad Overall Width:
- 37 mm
- Head Type:
- built-in-flush
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Operator Profile:
- without cap
- Cad Overall Height:
- 37 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 30.5 mm
- Bezel Material:
- plastic colour plated grey
- Sale Per Indivisible Quantity:
- 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Datasheet:
- View
