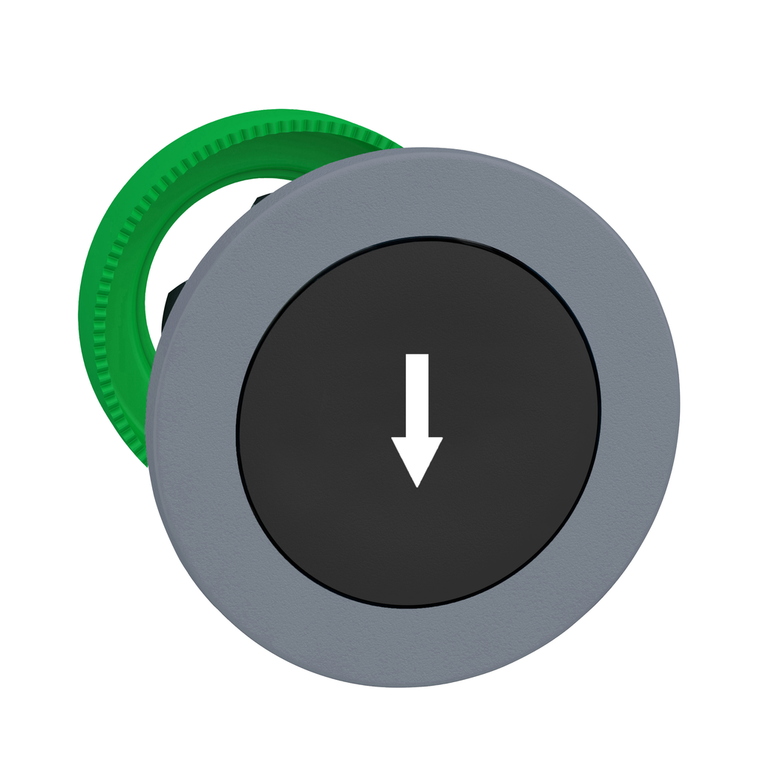

Schneider Electric ZB5FA335C0 Flmnt Black Cap Pbhead White Mark Arrow
Schneider Electric
$10.59
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Range Of Product:
- Harmony XB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class II IEC 60536
- Warranty:
- 18 months
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Cad Overall Width:
- 37 mm
- Cad Overall Height:
- 37 mm
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- head for non-illuminated push-button
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mounting Diameter:
- 30.5 mm
- Protective Treatment:
- TH
- Device Short Name:
- ZB5F
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Net Weight:
- 0.03 kg
- Mechanical Durability:
- 10000000 cycles
- Operator Profile:
- black flush, down arrow white)
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Cad Overall Depth:
- 30 mm
- Device Presentation:
- basic element
- Bezel Material:
- plastic colour plated grey
- Head Type:
- built-in-flush
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- UL Listed || CSA
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Type Of Operator:
- spring return
- Datasheet:
- View
