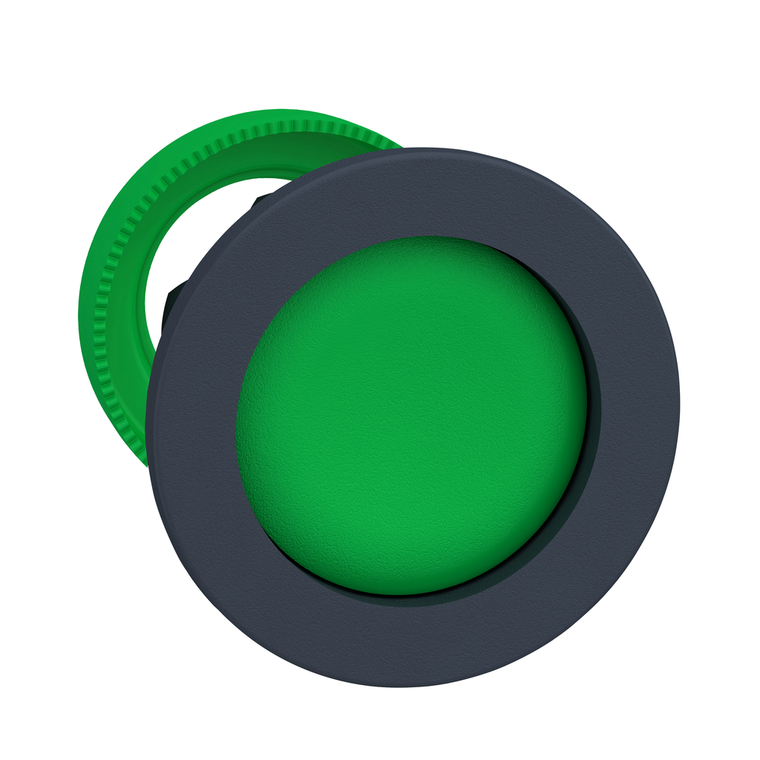

Schneider Electric ZB5FA36 Flush Mounted Green Pushbutton Head Rece

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5FA36 Flush Mounted Green Pushbutton Head Rece

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FA36

UPC:

3606481339089

MPN:

Condition:

New

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Rohs Exemption Information:

Yes

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Type Of Operator:

spring return

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Ambient Air Temperature For Operation:

-40-70 °C

Overvoltage Category:

class II IEC 60536

Standards:

EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1

Mechanical Durability:

10000000 cycles

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting

Cad Overall Depth:

30 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Bezel Material:

dark grey plastic

Operator Additional Information:

high guard

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Head Type:

built-in-flush

Operator Profile:

green recessed, unmarked

Ik Degree Of Protection:

IK03 IEC 50102

Product Or Component Type:

head for non-illuminated push-button

Warranty:

18 months

Shape Of Signaling Unit Head:

round

Device Short Name:

ZB5

Mounting Diameter:

30.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Cad Overall Width:

37 mm

Sustainable Offer Status:

Green Premium product

Range Of Product:

Harmony XB5

Net Weight:

0.03 kg

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1710010EN

Product Compatibility:

ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ

Circularity Profile:

ENVEOLI1710010EN

Sale Per Indivisible Quantity:

1

Protective Treatment:

TH

Ambient Air Temperature For Storage:

-40-70 °C

Product Certifications:

UL Listed || LROS (Lloyds register of shipping) || CSA || GL || BV || DNV

Cad Overall Height:

37 mm

Datasheet:

View
