Schneider Electric ZB5FA38 Flush Mounted Green Flush Caps Pushbutto
Schneider Electric
$16.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

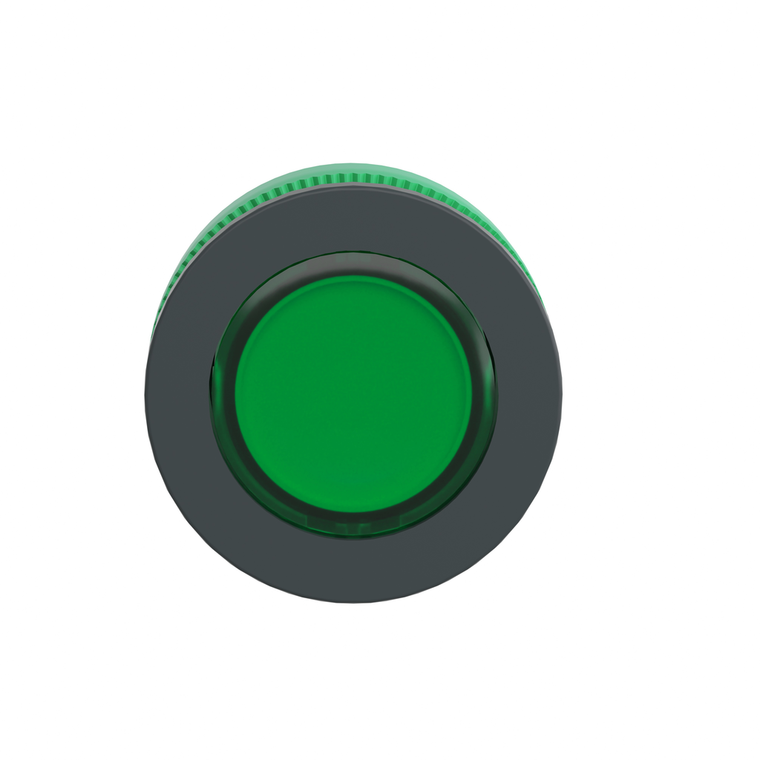

Schneider Electric ZB5FA38 Flush Mounted Green Flush Caps Pushbutto
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Bezel Material:
- dark grey plastic
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Type Of Operator:
- spring return
- Cad Overall Depth:
- 30 mm
- Product Certifications:
- CSA || BV || UL Listed || DNV || LROS (Lloyds register of shipping) || GL
- Net Weight:
- 0.017 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cap/Operator Or Lens Colour:
- green
- Cad Overall Width:
- 37 mm
- Sustainable Offer Status:
- Green Premium product
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB5
- Operator Additional Information:
- for insertion of legend
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Head Type:
- built-in-flush
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TC
- Overvoltage Category:
- class II IEC 60536
- Ik Degree Of Protection:
- IK03 EN 50102
- Group Of Product:
- flush push with inser of legend
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Standards:
- UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Operator Profile:
- green flush, unmarked
- China Rohs Regulation:
- X
- Product Or Component Type:
- head for illuminated push-button
- Cad Overall Height:
- 37 mm
- Mechanical Durability:
- 10000000 cycles
- Circularity Profile:
- ENVEOLI1710010EN
- Environmental Disclosure:
- ENVPEP1710010EN
- Main Group:
- illum push-button
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 s
- Reach Free Of Svhc:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Product Compatibility:
- universal LED
- Marking:
- unmarked
- Datasheet:
- View
