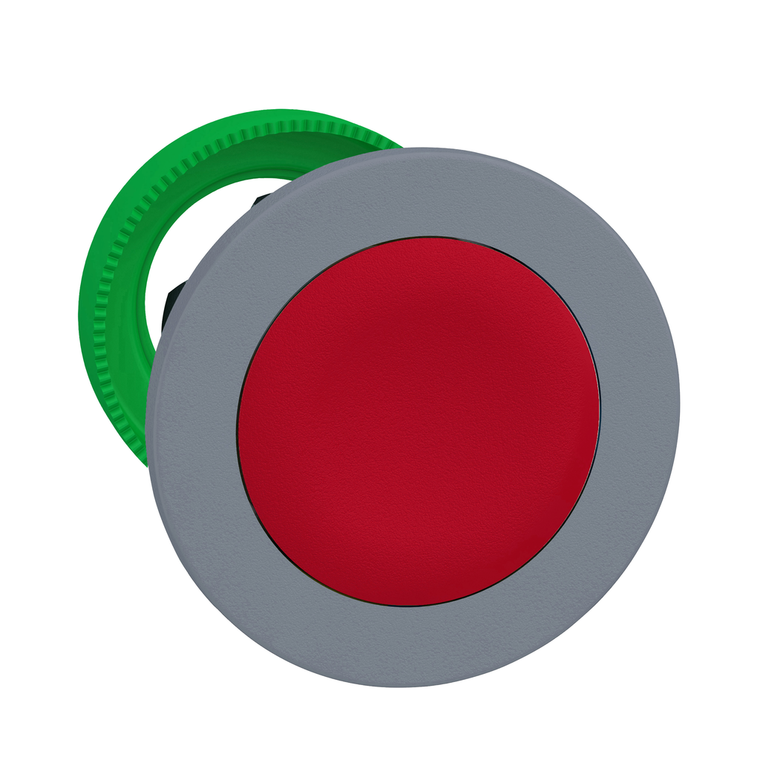

Schneider Electric ZB5FA4C0 Flush Mounted Red Flush Caps Pb Head
Schneider Electric
$9.03
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Device Presentation:
- basic element
- Operator Profile:
- red flush, unmarked
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 30.5 mm
- Warranty:
- 18 months
- Product Certifications:
- UL Listed || DNV || GL || CSA || LROS (Lloyds register of shipping) || BV
- Standards:
- IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
- Mechanical Durability:
- 10000000 cycles
- Ik Degree Of Protection:
- IK03 IEC 50102
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- plastic colour plated grey
- Cad Overall Depth:
- 30 mm
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Device Short Name:
- ZB5
- Net Weight:
- 0.03 kg
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Or Component Type:
- head for non-illuminated push-button
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 37 mm
- Protective Treatment:
- TH
- Overvoltage Category:
- class II IEC 60536
- Type Of Operator:
- spring return
- Head Type:
- built-in-flush
- Cad Overall Height:
- 37 mm
- Sale Per Indivisible Quantity:
- 1
- Datasheet:
- View
