Schneider Electric ZB5FD806 Flush Mounted Blue Selector Switch Head
Schneider Electric
$29.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

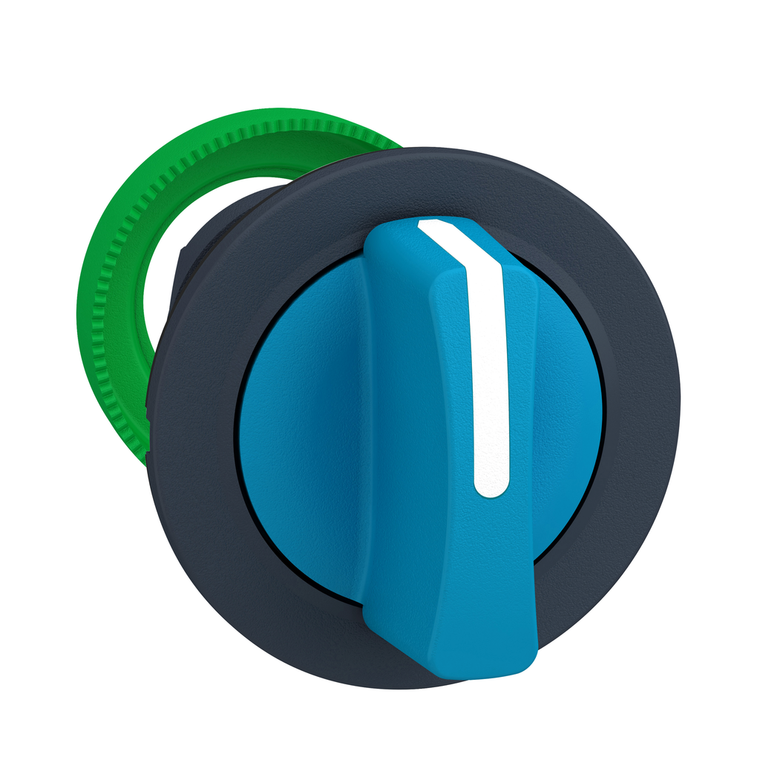

Schneider Electric ZB5FD806 Flush Mounted Blue Selector Switch Head
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Depth:
- 46 mm
- Shape Of Signaling Unit Head:
- round
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Type Of Operator:
- right to centre spring return
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Position Information:
- 3 positions +/- 45°
- Cad Overall Height:
- 37 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK03 IEC 50102
- Head Type:
- built-in-flush
- Mounting Diameter:
- 30.5 mm
- Operator Profile:
- blue standard handle
- Sale Per Indivisible Quantity:
- 1
- Overvoltage Category:
- class II IEC 60536
- Mechanical Durability:
- 1000000 cycles
- Net Weight:
- 0.031 kg
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- ZB5
- Product Certifications:
- CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL
- Product Or Component Type:
- head for selector switch
- Circularity Profile:
- ENVEOLI1710010EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1710010EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Bezel Material:
- dark grey plastic
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || JIS C8201-1
- Cad Overall Width:
- 37 mm
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Datasheet:
- View
