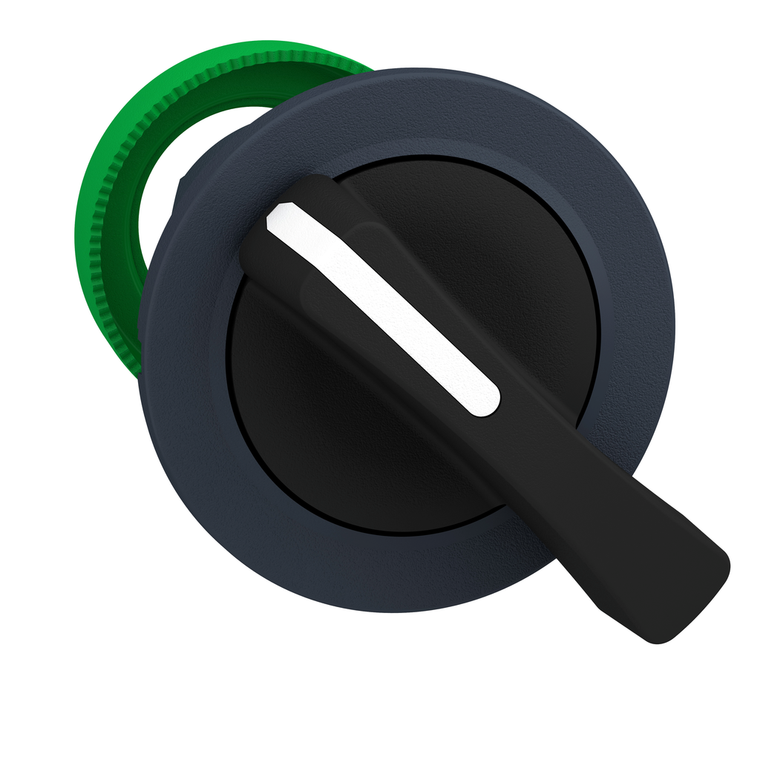

Schneider Electric ZB5FJ5 Flush Mounted Black Selector Switch Head
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Type Of Operator:
- to centre spring return
- Operator Profile:
- black long handle
- Ik Degree Of Protection:
- IK03 IEC 50102
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Head Type:
- built-in-flush
- Circularity Profile:
- ENVEOLI1710010EN
- Mechanical Durability:
- 1000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- Protective Treatment:
- TH
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1710010EN
- Shape Of Signaling Unit Head:
- round
- Operator Additional Information:
- non padlockable
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Overvoltage Category:
- class II IEC 60536
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Cad Overall Depth:
- 46 mm
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- Bezel Material:
- dark grey plastic
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Short Name:
- ZB5
- Range Of Product:
- Harmony XB5
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Net Weight:
- 0.031 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Position Information:
- 3 positions +/- 45°
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for selector switch
- Product Certifications:
- BV || CSA || GL || LROS (Lloyds register of shipping) || DNV || UL Listed
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Datasheet:
- View
