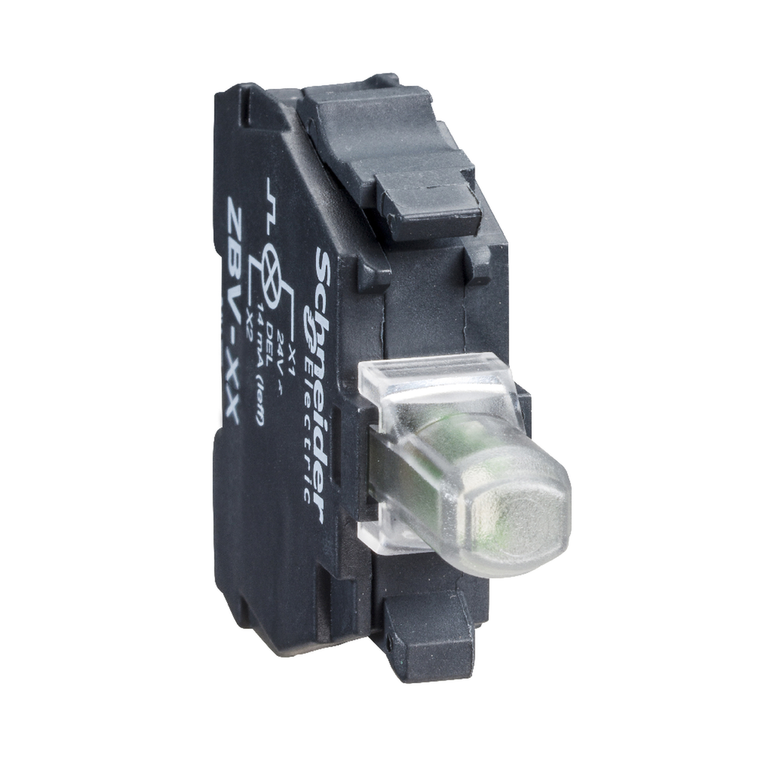

Schneider Electric ZBV18B1 Light block, Harmony XB4, Harmony XB5, flashing, for head 22mm, universal LED, screw clamp terminals, 24V
Schneider Electric
$61.00
This Harmony ZB, white flashing light block operates with a universal LED. It is supplied with 24V AC/DC and uses screw-clamp terminals. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
- Weight:
- 0.017 kg
- Warranty:
- 18 months
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Range Of Product:
- Harmony XB4 || Harmony XB5
- Ambient Air Temperature For Storage:
- -40-70°C
- Ip Degree Of Protection:
- IP20 IEC 60529
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Country of Origin:
- France
- Current Consumption:
- 15 mA
- Mercury Free:
- Yes
- Electrical Composition Code:
- M1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
- Protective Treatment:
- TH
- Light Block Supply:
- direct
- Ambient Air Temperature For Operation:
- -40-70°C
- Service Life:
- 100000 h at rated voltage and 25°C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Light Source Colour:
- white
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Signaling Type:
- flashing
- Product Certifications:
- CSA || UL Listed
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Bulb Base:
- integral LED
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Net Weight:
- 0.017 kg
- [Us] Rated Supply Voltage:
- 24 V
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Product Or Component Type:
- light block
- China Rohs Regulation:
- X
- Electromagnetic Emission:
- class B IEC 55011
- [Us] Rated Supply Voltage:
- 24 V AC/DC 50/60 Hz
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Sale Per Indivisible Quantity:
- 5
- Light Source:
- universal LED
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Of Block:
- front mounting
- Device Short Name:
- ZBV
- Standards:
- IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || JIS C8201-1
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Supply Voltage Limits:
- 19.2-30 V DC || 21.6-26.4 V AC
