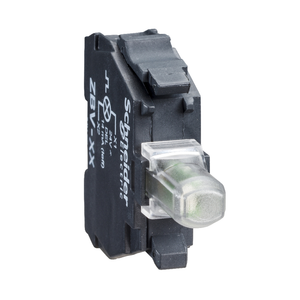

Schneider Electric ZBVBG19 Head for light block, Harmony XB5, XB4, 22mm, universal LED, screw terminals for lug, 24...120V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZBVBG19 Head for light block, Harmony XB5, XB4, 22mm, universal LED, screw terminals for lug, 24...120V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZBVBG19

UPC:

MPN:

ZBVBG19

Condition:

New

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Signaling Type:

steady

Light Block Supply:

direct

Ambient Air Temperature For Operation:

-40-70°C

Electromagnetic Emission:

class B IEC 55011

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP20 IEC 60529

Supply Voltage Limits:

19.2-132 V DC || 21.6-132 V AC

Light Source:

universal LED

[Us] Rated Supply Voltage:

24...120 V AC/DC 50/60 Hz

China Rohs Regulation:

X

Warranty:

18 months

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-40-70°C

Protective Treatment:

TH

Product Or Component Type:

light block

Sale Per Indivisible Quantity:

5

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

0.017 kg

Connections - Terminals:

screw terminals for lug

Weight:

0.017 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Service Life:

100000 h at rated voltage and 25°C

Device Short Name:

ZBV

Electrical Composition Code:

M1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1

[Us] Rated Supply Voltage:

24...120 V

Light Source Colour:

white

Country of Origin:

France

Mounting Of Block:

front mounting

Range Of Product:

Harmony XB4 || Harmony XB5

Bulb Base:

integral LED

Surge Withstand:

1 kV IEC 61000-4-5

Mercury Free:

Yes
