Sensopart

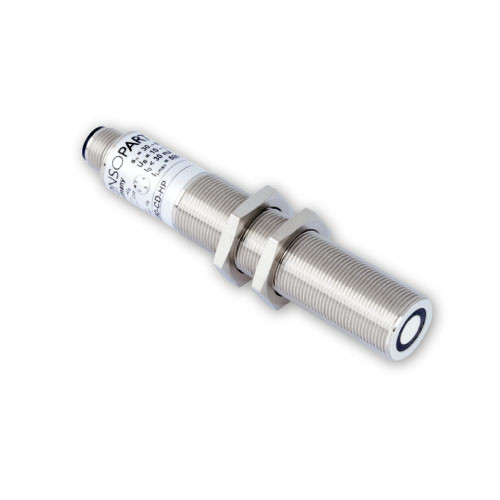

SensoPart UM 18-60/250-CD-HP-E Ultrasonic sensor with switching output

SKU:

690-51542

UPC:

MPN:

UM18-60/250-CD-HP-E

Condition:

New

Switching frequency [Hz]:

25

Output:

Switching (PNP)

Ultrasonic frequency [kHz]:

320

Series:

M18

Working distance min. [mm]:

30

Working distance max. [mm]:

250

Amount of swithing outputs:

1

Resolution [mm]:

0.4

Repeatability [mm]:

0.05

Temperature range [°C]:

-25 ... +70

Temperature drift [%]:

± 1.5 %

Connection type:

Plug M12, 4-pin

Enclosure rating:

IP65

Datasheet:

View

Catalog:

View

Operating Instructions:

View
