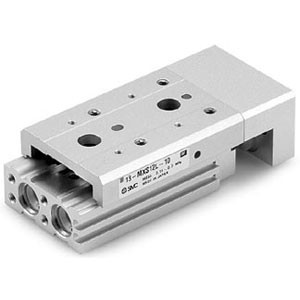

SMC 13-MXS20TN-30 13-MXS Series Clean Series Air Slide Table

SMC 13-MXS20L-150A-M9BSAPC | Clean Room Air Slide Table MXS Series 20mm Bore 150mm Stroke L-Type Complete M9B Assembly Extended

SMC
SKU:
13-MXS20TN-30
Availability:
Factory Stock
$386.65
Condition:
New
Current Stock:
Description

The SMC 13-MXS20L-150A-M9BSAPC is a clean room specification air slide table from the MXS series with 20mm bore, extended 150mm stroke, and complete M9B auto-switch assembly. Part number decoded: MXS = MXS series, 20 = 20mm bore, L = L-type body, 150 = 150mm stroke, A = A-port, M9BSAPC = complete M9B auto-switch assembly with pre-configured cables.

The 150mm stroke is an extended-travel option for the MXS20L, providing significant reach for medium-force clean room operations. The L-type body and A-port provide the specific mounting and plumbing interface. The M9BSAPC complete assembly provides plug-and-play sensing with factory-installed switches. At 20mm bore with 150mm travel, this slide table handles extended component transfers, wide scanning ranges, and multi-position operations.

The MXS20L-150A-M9BSAPC provides the longest listed MXS20L configuration with complete sensing. For shorter strokes at 20mm bore, the MXS20-40 provides 40mm. For the TN non-rotating version, the MXS20TN-30 provides 30mm with enhanced guidance. For the 25mm bore MXS, the MXS25 series steps up force. For NPN switch output, specify M9PSAPC instead of M9BSAPC. Clean series (13-) fluorine grease. RoHS compliant.

Additional Information
Series:
13-MXS (Clean Room)
Actuator Type:
Air Slide Table
Guide:
Precision Dual Rod Linear Bushing
Bore:
20mm
Stroke:
150mm
Body Type:
L
Port:
A
Auto-Switch:
M9BSAPC Complete Assembly
Travel:
Extended (150mm)
Clean Room Grade:
13-
Certifications:
RoHS
