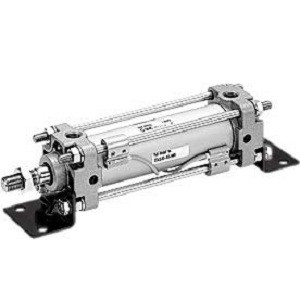

SMC 25A-CDA2C100-150Z | Secondary Battery Compatible Air Cylinder CA2 Series 100mm Bore 150mm Stroke Clevis Mount
SMC
$661.45
The SMC 25A-CDA2C100-150Z is a secondary battery compatible air cylinder from the CA2 series with 100mm bore and clevis mount. Part number decoded: CDA2 = CA2 double acting, C = clevis mount, 100 = 100mm bore, 150 = 150mm stroke, Z = auto-switch groove. The 25A- prefix designates secondary battery manufacturing compatibility.
The 100mm bore is among the largest in the CA2 range, generating approximately 471N at 0.6 MPa substantial force for heavy-duty battery production operations. The clevis mount (C) provides a pivoting mounting point that accommodates angular movement between the cylinder mounting and the workpiece, essential when the cylinder drives mechanisms that arc or pivot during their stroke. The 150mm stroke provides moderate travel at maximum bore.
The 25A-CDA2C100-150Z provides maximum CA2 force with clevis mounting. For the basic foot mount at 100mm bore, the CDA2B100 provides fixed mounting. For smaller bore clevis mount, the CDA2C40, CDA2C50, and CDA2C63 provide reduced force. The Z groove accepts D-series auto switches. For auto-switch equipped version, add M9NL or M9BL suffixes. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Clevis (C)
- Bore:
- 100mm
- Stroke:
- 150mm
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
