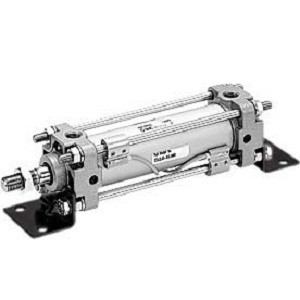

SMC 25A-CDA2D63-250Z | Secondary Battery Compatible Air Cylinder CA2 Series 63mm Bore 250mm Stroke Double Clevis Long
SMC
$460.24
The SMC 25A-CDA2D63-250Z is a secondary battery compatible air cylinder from the CA2 series with 63mm bore, 250mm stroke, and double clevis mount. Part number decoded: CDA2 = CA2 double acting, D = double clevis, 63 = 63mm bore, 250 = 250mm stroke, Z = auto-switch groove.
The 63mm bore with 250mm stroke in double clevis provides high-force, long-travel, full-pivot actuation. Both ends pivot freely, accommodating complex kinematic paths. At approximately 187N with 250mm travel, this handles heavy-duty linkage mechanisms, long-distance gate operations, and extended-reach pivoting material handling in secondary battery manufacturing equipment.
The 25A-CDA2D63-250Z provides long-stroke double-pivot at 63mm bore. For the same bore with auto-switch, the 25A-CDA2D63-250Z-M9BL provides M9B sensing. For single clevis at 63mm, the CDA2C63 series provides rod-end pivot. For D-mount at 80mm bore, the CDA2D80 provides increased force. The Z groove accepts D-series auto switches. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Double Clevis (D)
- Bore:
- 63mm
- Stroke:
- 250mm
- Travel:
- Long
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
