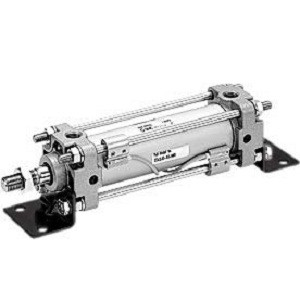

SMC 25A-CDA2D80-400Z | Secondary Battery Compatible Air Cylinder CA2 Series 80mm Bore 400mm Stroke Double Clevis Extra Long
SMC
$638.35
The SMC 25A-CDA2D80-400Z is a secondary battery compatible air cylinder from the CA2 series with 80mm bore, extra-long 400mm stroke, and double clevis mount. Part number decoded: CDA2 = CA2 double acting, D = double clevis, 80 = 80mm bore, 400 = 400mm stroke, Z = auto-switch groove.
The 400mm stroke is the longest listed D-mount CA2 at 80mm bore, providing extra-long heavy-duty pivoting actuation. At 80mm bore with 400mm travel, this handles the longest-reach heavy-duty linkage mechanisms, large gate operations, and extended material handling strokes in secondary battery manufacturing. Both clevis ends pivot to accommodate the angular displacement inherent in long-stroke pivoting applications.
The 25A-CDA2D80-400Z provides maximum travel heavy-duty double clevis. For the shorter stroke with auto-switch, the 25A-CDA2D80-200Z-M9BVL provides 200mm sensored. For 100mm bore at this stroke range, the CDA2 series may offer options. For auto-switch on this unit, add M9BL/M9NL suffixes. The Z groove accepts D-series switches. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Double Clevis (D)
- Bore:
- 80mm
- Stroke:
- 400mm
- Travel:
- Extra Long
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
