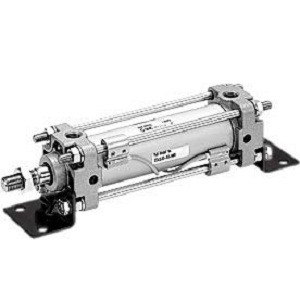

SMC 25A-CDA2F100-200Z-M9NW | Secondary Battery Compatible Air Cylinder CA2 Series 100mm Bore 200mm Stroke F-Flange Auto-Switch
SMC
$544.88
The SMC 25A-CDA2F100-200Z-M9NW is a secondary battery compatible air cylinder from the CA2 series with 100mm bore, 200mm extended stroke, flange mount, and auto-switch. Part number decoded: CDA2 = CA2 double acting, F = flange, 100 = 100mm bore, 200 = 200mm stroke, Z = auto-switch groove, M9NW = pre-mounted auto-switch (M9N with W wiring).
The 200mm stroke provides 50mm more travel than the 150mm variant at the maximum 100mm bore. The M9NW switch with W wiring specification routes the lead wire differently than the M9NL, suited for specific cable management requirements. At approximately 471N with 200mm travel and rigid flange mounting, this is one of the highest-force, longest-stroke, rigidly-mounted CA2 configurations.
The 25A-CDA2F100-200Z-M9NW provides extended-travel maximum-force flange actuation. For the 150mm stroke, the 25A-CDA2F100-150Z-M9NL provides shorter travel. For M9NL lead wire instead of M9NW, select the -M9NL suffix. For the 40mm bore flange at extended stroke, the 25A-CDA2F40-350Z provides smaller-bore options. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Flange (F)
- Bore:
- 100mm
- Stroke:
- 200mm
- Auto-Switch:
- M9NW Pre-Mounted
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
