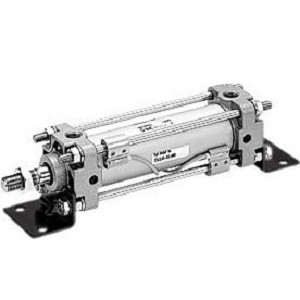

SMC 25A-CDA2F50-350Z | Secondary Battery Compatible Air Cylinder CA2 Series 50mm Bore 350mm Stroke F-Flange Extra Long
SMC
$335.20
The SMC 25A-CDA2F50-350Z is a secondary battery compatible air cylinder from the CA2 series with 50mm bore and extra-long 350mm stroke in flange mount. Part number decoded: CDA2 = CA2 double acting, F = flange, 50 = 50mm bore, 350 = 350mm stroke, Z = auto-switch groove.
At 50mm bore with 350mm extra-long stroke and rigid flange mounting, this provides approximately 118N through an extended precision-aligned travel. The flange mount maintains concentricity throughout the full 350mm stroke, essential for long-distance pressing, feeding, and transfer operations. The base unit without auto-switch provides the most economical option for applications where position sensing is handled externally.
The 25A-CDA2F50-350Z provides mid-force extra-long flange actuation. For auto-switch, the 25A-CDA2F50-75Z-M9NL provides a shorter sensored variant. For the 40mm bore at the same stroke, the 25A-CDA2F40-350Z-M9N provides reduced force. For the 100mm bore flange, the CDA2F100 provides maximum force. Auto switches mount in the Z groove. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Flange (F)
- Bore:
- 50mm
- Stroke:
- 350mm
- Travel:
- Extra Long
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
