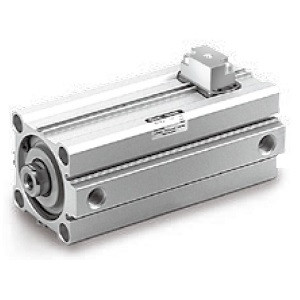

SMC 25A-CDBQ2G100-100DC-HN-M9BV 25A-CBQ2 Series Compatible With Secondary Compact Cylinder

SMC 25A-CDBQ2G100-100DC-HN-M9BV | Secondary Battery Compatible Compact Cylinder CBQ2 Series 100mm Bore 100mm Stroke Max Force

SMC
SKU:
25A-CDBQ2G100-100DC-HN-M9BV
Availability:
Factory Stock
$1,023.15
Condition:
New
Current Stock:
Description

The SMC 25A-CDBQ2G100-100DC-HN-M9BV is a secondary battery compatible compact cylinder from the CBQ2 series with the largest 100mm bore. Part number decoded: CDBQ2 = CBQ2 double acting, G = G-type mount, 100 = 100mm bore, 100 = 100mm stroke, DC = configuration, HN = head-side N option, M9BV = pre-mounted auto-switch (M9B with V voltage).

At 100mm bore, the CBQ2 generates approximately 471N at 0.6 MPa in the compact guided package — maximum force in the CBQ2 range. The equal 100mm bore and stroke creates a high-force medium-travel actuator. The G-type mount provides a specific mounting interface. The M9BV switch with V voltage specification provides PLC-compatible position sensing optimized for specific electrical requirements.

The 25A-CDBQ2G100-100DC-HN-M9BV provides maximum compact guided force. For the 63mm bore CBQ2, the 25A-CDBQ2A63 provides reduced force. For the CA2 tie-rod at 100mm bore, the 25A-CDA2 series provides the larger-body alternative. For CQ2 compact at 100mm bore, the 25A-CDQ2A100 provides the non-guided alternative. RoHS compliant.

Additional Information
Series:
25A-CBQ2 (Secondary Battery)
Cylinder Type:
Compact Guided
Action:
Double-Acting
Mount:
G-Type
Bore:
100mm
Stroke:
100mm
Options:
DC HN
Auto-Switch:
M9BV Pre-Mounted
Force:
Maximum (100mm Bore)
Application:
Secondary Battery Manufacturing
Certifications:
RoHS
