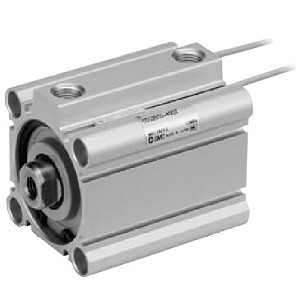

SMC 25A-CDQ2A100-100DCMZ | Secondary Battery Compatible Compact Cylinder CQ2 Series 100mm Bore 100mm Stroke DCM Configuration
SMC
$540.00
The SMC 25A-CDQ2A100-100DCMZ is a secondary battery compatible compact cylinder from the CQ2 series with the largest 100mm bore. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 100 = 100mm bore, 100 = 100mm stroke, DCM = specific configuration (D = option, C = cushion, M = modification), Z = auto-switch groove.
The CQ2 compact cylinder provides maximum force density in a thin, square profile that minimizes installation space. At 100mm bore, the CQ2 generates approximately 471N at 0.6 MPa through a compact footprint. The DCM configuration specifies cushioning and modification options. The equal 100mm bore and stroke creates a symmetrical high-force compact actuator for secondary battery pressing, clamping, and positioning.
The 25A-CDQ2A100-100DCMZ provides maximum CQ2 force at square profile. For auto-switch versions, the CDQ2A100-150DCZ-M9BWL provides 150mm with sensing. For the 16mm bore CQ2, the CDQ2A16 provides micro-compact options. For guided compact at 100mm bore, the CBQ2 series provides the guided alternative. The Z groove accepts auto switches. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Bore:
- 100mm
- Stroke:
- 100mm
- Options:
- DCM
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
