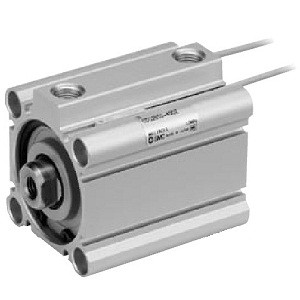

SMC 25A-CDQ2A20-15DCZ-M9NL;Secondary Battery Compatible Compact Cylinder CQ2 Series 20mm Bore 15mm Stroke DC Cushion Auto-Switch
SMC
$205.45
The SMC 25A-CDQ2A20-15DCZ-M9NL is a secondary battery compatible compact cylinder with 20mm bore, 15mm stroke, DC cushion, and auto-switch. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 20 = 20mm bore, 15 = 15mm stroke, DC = cushion, Z = auto-switch groove, M9NL = pre-mounted auto-switch.
The 20mm bore with 15mm short stroke and DC cushioning provides approximately 19N at 0.6 MPa through a cushioned short travel. The DC cushion absorbs end-of-stroke energy, and the M9NL switch confirms position. This compact cushioned actuator handles precision short-stroke applications in secondary battery equipment requiring controlled deceleration at stroke ends.
The 25A-CDQ2A20-15DCZ-M9NL provides cushioned sensored CQ2 at 20mm bore. For the DM option at the same bore, the CDQ2A20-15DMZ-M9NL provides an alternative modification. For the 16mm bore CQ2, the CDQ2A16 provides micro options. For 100mm bore, the CDQ2A100 provides maximum force. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Bore:
- 20mm
- Stroke:
- 15mm
- Options:
- DC (Cushion)
- Auto-Switch:
- M9NL Pre-Mounted
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
