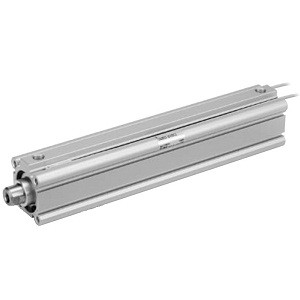

SMC 25A-CDQ2A50-125DCMZ-M9BWL | Secondary Battery Compatible Compact Cylinder CQ2 Series 50mm Bore 125mm Stroke DCM Cushion PNP Auto-Switch
SMC
$405.10
The SMC 25A-CDQ2A50-125DCMZ-M9BWL is a secondary battery compatible compact cylinder with 50mm bore and 125mm long stroke, delivering substantial force over extended travel. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 50 = 50mm bore, 125 = 125mm stroke, DCM = cushion with M modification, Z = auto-switch groove, M9BWL = pre-mounted PNP auto-switch with W wiring and L lead.
At 50mm bore the CQ2 produces approximately 118N at 0.6 MPa through a long 125mm DCM-cushioned stroke. The DCM cushion is essential at this combination of force and travel to protect heavy-duty tooling from end-of-stroke impact. The 50mm bore marks the transition from light-duty to medium-duty compact actuation in the CQ2 range, handling loads that the 40mm bore's 75N cannot manage.
Deployed on battery module end-plate pressing and holding fixtures, cell stack compression prior to welding on module assembly lines, pouch cell formation press platens, electrode roll-to-roll coating tension arm actuators, and pack-level thermal management component insertion tooling. Choose the 50mm bore 125mm stroke when applications require both high force and long travel such as compressing multi-cell stacks that span 100mm+ in height. For shorter stroke at 50mm bore, the CDQ2A50-25DZ provides 25mm and the CDQ2A50-50DMZ provides 50mm. For higher force, step to 63mm bore with the CDQ2A63 series. RoHS compliant.
- Series:
- 25A-CQ2 (Secondary Battery)
- Cylinder Type:
- Compact
- Action:
- Double-Acting
- Mount:
- A-Type
- Bore:
- 50mm
- Stroke:
- 125mm
- Options:
- DCM (Cushion + Modification)
- Auto-Switch:
- M9BWL Pre-Mounted (PNP)
- Operating Pressure:
- 0.05-1.0 MPa
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
