SMC 25A-CDQ2A100-125DCMZ 25A-CQ2 Series Compatible With Secondary Batteries Compact Cylinder

SMC 25A-CDQ2A100-125DCMZ | Secondary Battery Compatible Compact Cylinder CQ2 Series 100mm Bore 125mm Stroke DCM

SMC
SKU:
25A-CDQ2A100-125DCMZ
Availability:
Factory Stock
$539.30
Condition:
New
Current Stock:
Description

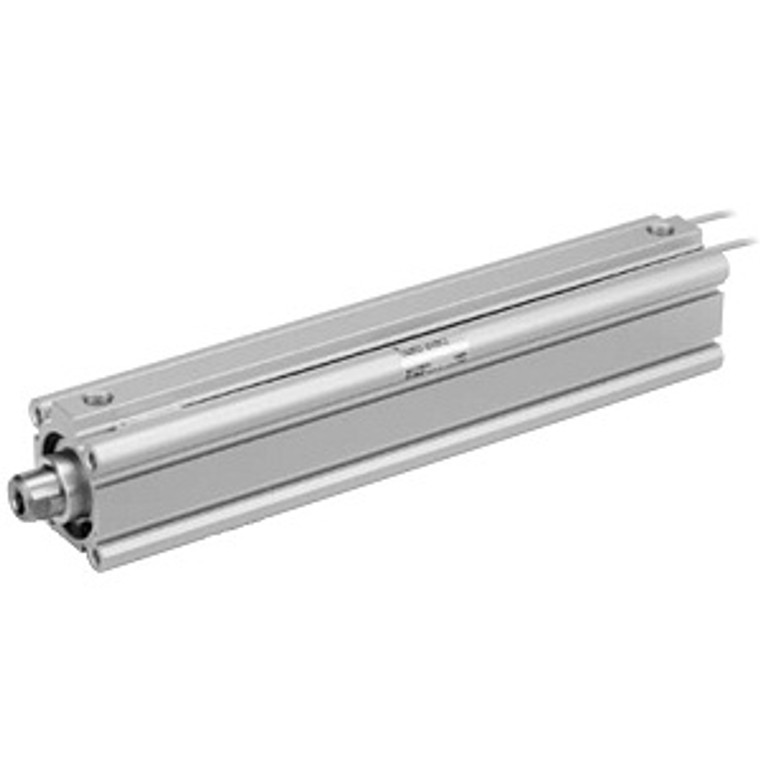

The SMC 25A-CDQ2A100-125DCMZ is a secondary battery compatible compact cylinder with 100mm bore and 125mm stroke. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 100 = 100mm bore, 125 = 125mm stroke, DCM = configuration, Z = auto-switch groove. The 125mm stroke provides 25% more travel than the 100mm variant.

At 100mm bore with 125mm stroke, this provides maximum CQ2 force through slightly extended travel. The DCM configuration includes cushioning and modifications. The compact profile at 100mm bore delivers the highest force density among secondary battery compatible compact cylinders.

The 25A-CDQ2A100-125DCMZ provides extended-stroke maximum CQ2 force. For the 100mm stroke, the CDQ2A100-100DCMZ provides square-profile. For the 150mm with switch, the CDQ2A100-150DCZ-M9BWL provides sensing. For different bore CQ2 at 100mm bore, the 175mm and 25mm stroke options provide range. Auto switches mount in the Z groove. RoHS compliant.

Additional Information
Series:
25A-CQ2 (Secondary Battery)
Cylinder Type:
Compact
Action:
Double-Acting
Bore:
100mm
Stroke:
125mm
Options:
DCM
Auto-Switch:
Compatible (Z Groove)
Application:
Secondary Battery Manufacturing
Certifications:
RoHS
