SMC AF20-01-A Modular Air Filter, Rc 1/8, 5 Micron, Polycarbonate Bowl, Manual Drain
SMC
$21.75
Lifecycle note: SMC ended manufacture of the AF-A series in March 2025. The direct replacement is the AF20-01-D from the newer AF-D series. The AF20-01-A remains a valid spare for existing AF20 air-preparation stations - see the AF20-01-D for new builds.

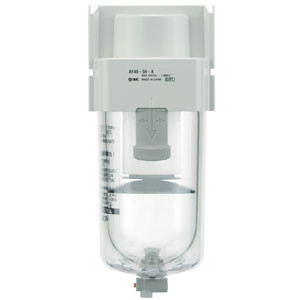

The SMC AF20-01-A is a modular pneumatic air filter from SMC's AF10-AF60-A series, with a body size 20, Rc 1/8 ports, a 5 micron filter element, a polycarbonate bowl, and a manual drain (drain cock). It removes condensed water and solid particulate from compressed air ahead of regulators, lubricators, valves and actuators. Its modular construction connects directly to other size-20 SMC air-preparation components to build a compact F.R.L. station.
AT A GLANCE
- Type: Modular air filter, AF10-AF60-A series, body size 20
- Port size: Rc 1/8
- Filtration: 5 micron nominal element
- Bowl: Polycarbonate, with drain cock (manual drain)
- Flow direction: Left to right
- Construction: Modular - couples to size-20 SMC F.R.L. components
- One-piece element & bowl for tool-free, in-hand element replacement
- Lifecycle: Discontinued 3/2025 - direct replacement AF20-01-D
Who still orders the AF20-01-A
The AF20-01-A is most often purchased as a like-for-like spare for machines and air-prep panels already built around the AF-A series. If you are maintaining an existing line, replacing a cracked bowl or a clogged filter, or matching the exact footprint and connection of an installed size-20 station, the AF20-01-A keeps the assembly consistent without re-plumbing. For new designs, specify the AF20-01-D instead - it is the current production part and the one SMC supports going forward.
AF-A vs AF-D: what changed
The AF-A and AF-D are both 5 micron modular air filters that share SMC's one-piece element-and-bowl design for fast, tool-free element changes. The newer AF-D series updates the housing for roughly 1.3x more filtration capacity and improved water separation for longer element life, while keeping the same modular interface so it drops into the same air-prep lineup. For the AF20-01-A specifically, the equivalent new part is the AF20-01-D (body size 20, Rc 1/8).
Technical Specifications
| Model & Configuration | |
| Manufacturer Part No. | AF20-01-A |
| Series | AF10-AF60-A Modular Type Air Filters |
| Body size | 20 |
| Port size | Rc 1/8 |
| Bowl material | Polycarbonate |
| Drain | Manual (drain cock), without auto drain |
| Flow direction | Left to right |
| Mounting | Without mounting option |
| Performance (AF20 series standard) | |
| Nominal filtration rating | 5 µm |
| Fluid | Air |
| Max. operating pressure | 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient & fluid temperature | -5 to 60 °C (no freezing) |
Performance figures reflect SMC's standard AF20 series ratings. Confirm exact values for this build against SMC's datasheet (login-gated) before quoting to spec-critical applications.
AF20-01-A part number breakdown
- AF - Modular air filter
- 20 - Body size 20
- 01 - Port size Rc 1/8
- A - AF-A series (polycarbonate bowl, drain cock, flow left to right, MPa nameplate)
Maintenance & Replacement Parts
- AF20P-060S - replacement filter element (5 µm) for AF20
- C2SF-A - bowl assembly
- C2SFP-260S - bowl O-ring
- AF22P-040S - baffle
Frequently Asked Questions
Is the SMC AF20-01-A still available?
SMC ended manufacture of the AF-A series in March 2025. The AF20-01-A is still ordered as a service spare for existing equipment; for new applications SMC specifies the AF20-01-D.
What is the direct replacement for the AF20-01-A?
The AF20-01-D - same body size 20 and Rc 1/8 ports, from SMC's current AF-D series. It uses the same modular interface, so it fits the same air-preparation lineup.
What is the filtration rating of the AF20-01-A?
5 micron nominal. The replaceable element (AF20P-060S) removes water droplets and solid particulate from the compressed air supply.
What port size and bowl does it have?
Rc 1/8 ports and a polycarbonate bowl with a manual drain cock. Flow direction is left to right.
Order the SMC AF20-01-A from Automation Distribution
Automation Distribution is an authorized SMC distributor serving PA, NJ, NY, DE, MD, DC and VA. Need this as a service spare, the matching AF20P-060S element, or the current-production AF20-01-D for a new build? Contact our pneumatics specialists or add to cart above.
