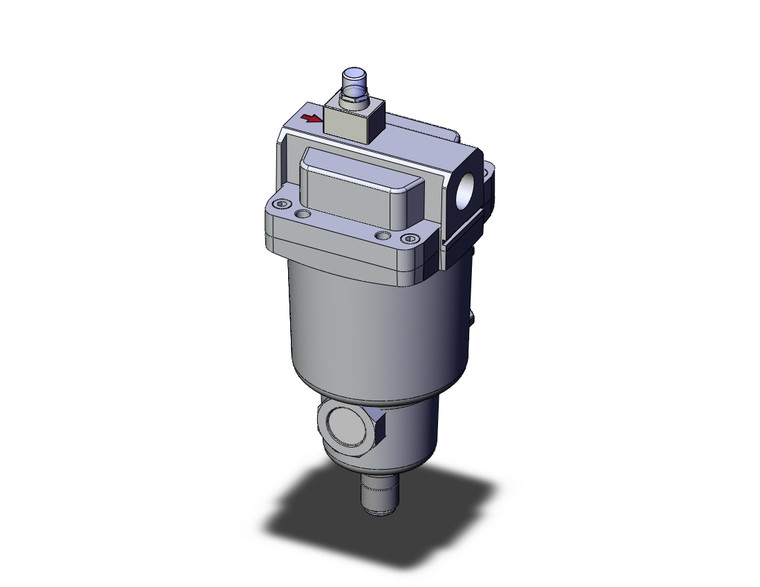

SMC AM450C-N04C-T Mist Separator
- SKU:
- AM450C-N04C-T
- Condition:
- New
- Body Size:
- 450C [78SCFM (2,200l/Min), Approx. Compressor Output 15HP, (11kW)]
- Thread:
- N (NPT)
- Port Size:
- 04 (1/2)
- Accessory:
- None
- Auto Drain:
- C (N.C. Auto Drain)
- Rubber Material:
- Standard
- Air Pressure:
- Standard
- Drain Guide:
- None
- IN-OUT Direction:
- Standard
- Pressure Switch 125VAC, 30VDC:
- None
- Element Service Indicator:
- T (Yes)
- Pressure Switch 30V:
- None
- Degreasing Wash:
- None
- Made-to-Order:
- None
Description
AM150C-550C/AM650-850, Coalescing Mist Separator
The legacy series AM mist separators range from 1/8 to 2 and feature a rugged aluminum housing. These coalescing filters are nominally rated at 0.3 micron for an initial stage of oil removal after a particulate filter.
- Particulate filtration, oil mist separation- Modular connection capable AM150C~550C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT, or G)
- Nominal filtration rating: 0.3 3
-
