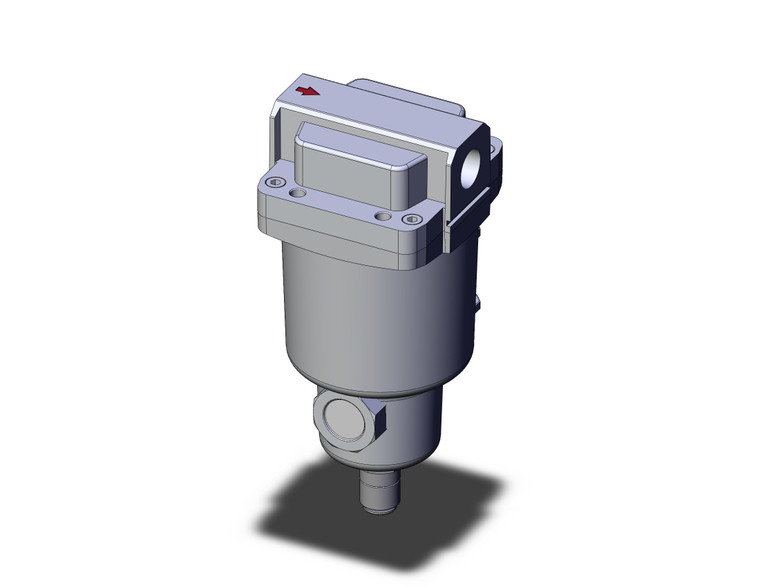

SMC AM450C-N04C Mist Separator

(No reviews yet) Write a Review
SKU:
AM450C-N04C
MPN:
AM450C-N04C
Condition:
New
Manufacturer Part #:
AM450C-N04C
Port Size:
1/2
Rubber Material:
Standard
IN-OUT Direction:
Standard
Degreasing Wash:
None
Body Size:
78SCFM (2,200l/Min), Approx. Compressor Output 15HP, (11kW)
Thread:
NPT
Air Direction:
Standard
Auto Drain:
N.C. Auto Drain
$173.25

Description

AM150C-550C/AM650-850, Coalescing Mist Separator

The legacy series AM mist separators range from 1/8 to 2 and feature a rugged aluminum housing. These coalescing filters are nominally rated at 0.3 micron for an initial stage of oil removal after a particulate filter.

- Particulate filtration, oil mist separation
- Modular connection capable AM150C~550C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT, or G)
- Nominal filtration rating: 0.3 3
-

Series Catalog

AutoCAD File
