SMC CDQ2B63-40DCMZ-M9BLS CQ2 Z Series Compact Cylinder

SMC

SKU:

CDQ2B63-40DCMZ-M9BLS

$144.20

(No reviews yet) Write a Review

Condition:

New

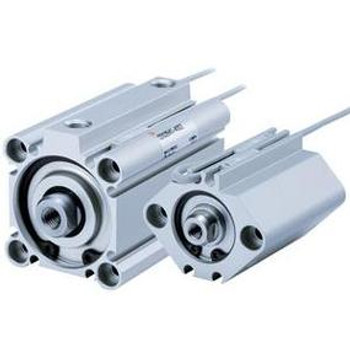

CQ2 Z Series Compact Cylinder

Sizes 4, 6, and 10 have been added [New];

4 to 200 lineup;

Space-saving cylinder designed with a compact body;

It is possible to mount small auto switches on 4 surfaces. (2 surfaces; for 12 to 25);

No projection of auto switch;

Lighter weight: Reduced by 5 to 13% (compared with the existing; CQ2 series);

Added pivot brackets for double clevis and compact type foot brackets;

Part numbers with rod end bracket and/or mounting bolt available; (Not necessary to order a bracket for the applicable cylinder separately.);

With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,; CDQP2, CDQ2 S, CDBQ2)

Built-in Magnet:: Built-in Magnet
Mounting Style:: Through-hole (Standerd)
Type:: Pneumatic
Bore Size:: Bore Size 63 mm
Port Thread Type:: Rc/M Thread
Cylinder Stroke:: Standard Stroke 40 mm
Dual Stroke Mark:: Without Two Stroke Mark
Cylinder Stroke 2:: Without Cylinder Stroke 2
Body Option:: With Rubber Bumper And Rod End Male Thread
Auto Switch Mounting Groove:: 12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:: None
Rod End Bracket:: None
Auto Switch:: Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
Number Of Auto Switches:: 1 pc.
Made To Order:: Standard
