SMC CE1D32-100L Cyl, Scale, W/Connector
- SKU:
- CE1D32-100L
- Condition:
- New
- Manufacturer Part #:
- CE1D32-100L
- Number of Cores:
- 2 pcs. [Or None in the Case of No Switch)
- Cable Length:
- 3m
- Mounting:
- Double Clevis
- Bore Size:
- 32mm
- Lead or Prewired Connector:
- 0.5m [Or None in the Case of No Switch]
- Stroke:
- 100mm
- Auto Switch:
- No Switch
- Cushion:
- 40~63 Bore-Cushion Both Sides
- Connector Type:
- Connector
Description

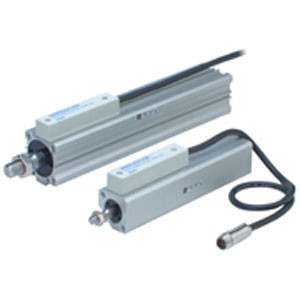

CE1, Stroke Reading Cylinder, Standard
The CE1 series is a stroke reading cylinder with position feedback. The home position can be anywhere within the cylinder stroke. Measurement is possible throughout the full stroke range. The CE1 series is offered in 6 bore sizes and is auto switch capable.
-
- Stroke reading cylinder with position feedback- Resolution: 0.1mm
- Water resistance improved by changing sensor unit filter
- Power supply voltage 12 to 24V DC
- Numerous stroke variations
- Improved noise resistance
- Bore sizes: 12, 20, 32, 40, 50, 63
-
