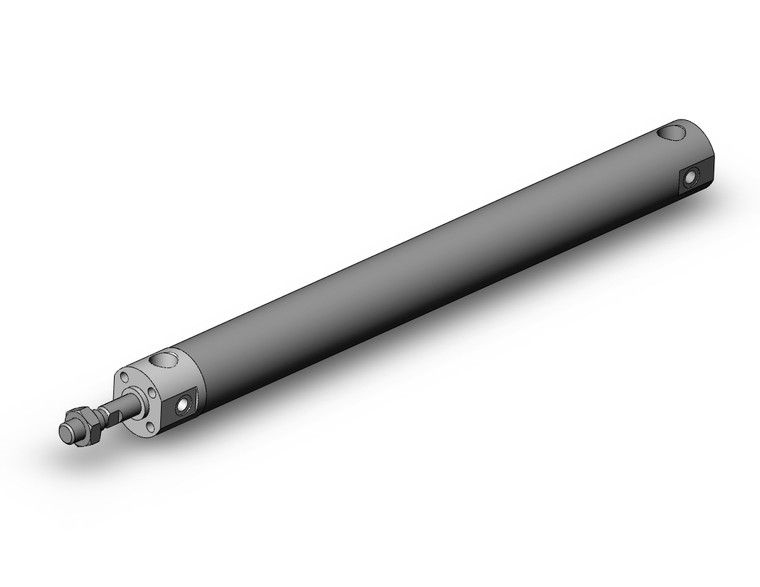

SMC CG1BN20-200Z Cg1 Cylinder

(No reviews yet) Write a Review
SKU:
CG1BN20-200Z
MPN:
CG1BN20-200Z
Condition:
New
Availability:
In stock: 3
Magnet:
None
Mounting:
B (Basic)
Type:
N (Rubber Bumper)
Bore:
20mm
Port Thread Type:
Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
Stroke:
200mm
Thread:
Male Rod End
Suffix for Cylinder:
w/o Rod Boot
Pivot Bracket:
None
Rod End Bracket:
None
Auto Switch:
No Switch
Lead Wire or Prewire Connection:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
X Option:
None
  • <h2>C(D)G1-Z, Double Acting, Single Rod, Air Cylinder, w/X Options</h2><p><h3>Series CG1 single rod, double acting air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminum to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Various mounting bracket options are available. Female piston rod threads are available as a standard option. Auto switch capable.</h3>- femalee rod end available as standard.<br>- Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 <br>- Easy fine adjustment of auto switch position<br>- No trunnion mounting femalee thread<br>- Various mounting bracket options<p><a href="https://content2.smcetech.com/pdf/CG1_Z.pdf" target="_blank">Series Catalog</a>
  • SMC CG1BN20-200Z cg1, air cylinder
$41.45

Description

C(D)G1-Z, Double Acting, Single Rod, Air Cylinder, w/X Options

Series CG1 single rod, double acting air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminum to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Various mounting bracket options are available. Female piston rod threads are available as a standard option. Auto switch capable.

- femalee rod end available as standard.
- Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100
- Easy fine adjustment of auto switch position
- No trunnion mounting femalee thread
- Various mounting bracket options

Series Catalog

AutoCAD File
