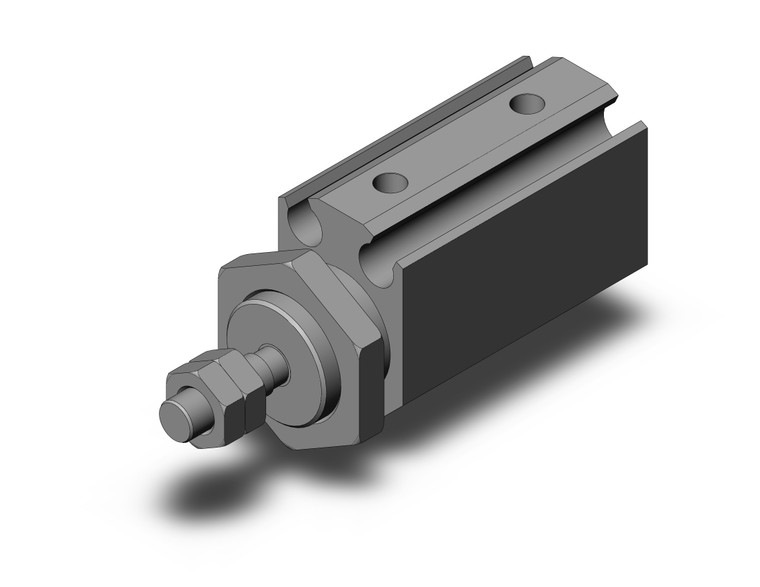

SMC CJP2B10-10D Round Body Cylinder
- SKU:
- CJP2B10-10D
- Condition:
- New
- Availability:
- In stock: 10
- Magnet:
- None
- Mounting:
- B (Basic)
- Bore Size:
- 10 mm
- Stroke:
- 10mm
- Rod End Thread:
- With Thread
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- Option:
- None
Description
C(D)JP2, Pin Cylinder, Double Acting, Single Rod
Available in four bore size options, series CJP2 includes a tiny, but powerful, 4mm bore size option making it the smallest double acting pin cylinder around. 6, 10 and 16mm bore sizes complete the range, all featuring extruded aluminium bodies, making them not only compact, but extremely light weight. Series CJP2 is auto switch capable and other options include rubber bumper cushions, and made to order models including both heat and cold resistant types. Mounting possibilities include basic/panel, flange, foot, clevis and trunnion options.
- The body material has been changed from brass to aluminium, achieving impressive weight reduction.- The overall length of the cylinder has been reduced resulting in an extremly compact cylinder.
- Solid state auto-switches can also be mounted now.
- Longer stroke options are now available.
- Internal rubber bumpers provide quieter operation and longer life (up to 5 million cycles).
