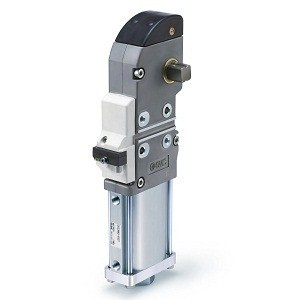

SMC CKZ3N50TF-90DPF-X2742A Clamp Cylinder
- SKU:
- CKZ3N50TF-90DPF-X2742A
- Condition:
- New
- Bore Size:
- 50mm
- Cylinder Port:
- TF (G)
- Arm Opening Angle:
- 90 (90)
- Arm Position:
- D (Both Sides)
- Switch Type:
- P (P & F)
- Metal Switch Cassette Cover:
- None
- Front Mounting:
- F (Yes)
- Top Cover:
- Rubber Cover
- Option:
- X2742A (Basic Type)
- Handle Mounting Position:
- None
Description
CKZ3N, Aluminum Body NAAMS Power Clamp Cylinder
CKZ3N power clamp conforms to the NAAMS standard. The improved design reduced weight by up to 39% with aluminum body. The rounded cover design and release button with minimal protrusion, reduce weld spatter accumulation. The arm opening angle ranges from 15 to 135 and can be easily changed by replacing the stopper body. Available in 50 and 63 bore sizes.
- Complies with NAAMS standard (CKZ3N)- 9 opening angles: 15, 30, 45, 60, 75, 90, 105, 120, 135
- 75 types of arm variations (CKZ3N)
- Metal cover and metal switch cassette options available
- Optional manual handle operator (X2568) available
-
