SMC CLA2D63TN-25-E Tie Rod Cylinder W/Lock
- SKU:
- CLA2D63TN-25-E
- Condition:
- New
- Magnet:
- None
- Mounting:
- D (Double Clevis)
- Style:
- Aluminum Tube
- Bore Size:
- 63mm
- Thread:
- TN (NPT)
- Stroke:
- 25mm
- Option:
- w/o Rod Boot, Cushion= Both Sides (Air-hydro has No Cushion)
- Lock Operation:
- E [Spring Lock (Lock Exhaust)]
- Auto Switch:
- No Switch
- Lead Wire or Prewied Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
the cla2 cylinder acts as an air-operated brake with spring-backup. when external position feedback sends a signal to an air valve, the brake is actuated and fast-acting shoes grab the actuator shaft. when pressure is removed, the spring automatically locks the brake onto the shaft. three locking mechanisms are available: spring lock, air pressure lock and air/spring pressure lock. the cla2 locks in either direction, comes in five bore sizes, and is available with pt or npt ports. other features include non-lube operation, air cushions, and seven mounting styles.
- double acting, single rod cylinder w/lock
- mounting: basic, axial foot, rod flange, head flange, single clevis, double clevis, center trunnion
- bore sizes (mm): 40, 50, 63, 80, 100
- strokes up to 1500mm (depending on bore size and mounting)
- auto switch capable

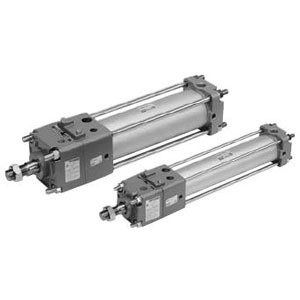

*image representative of product category only. actual product may vary in style.
