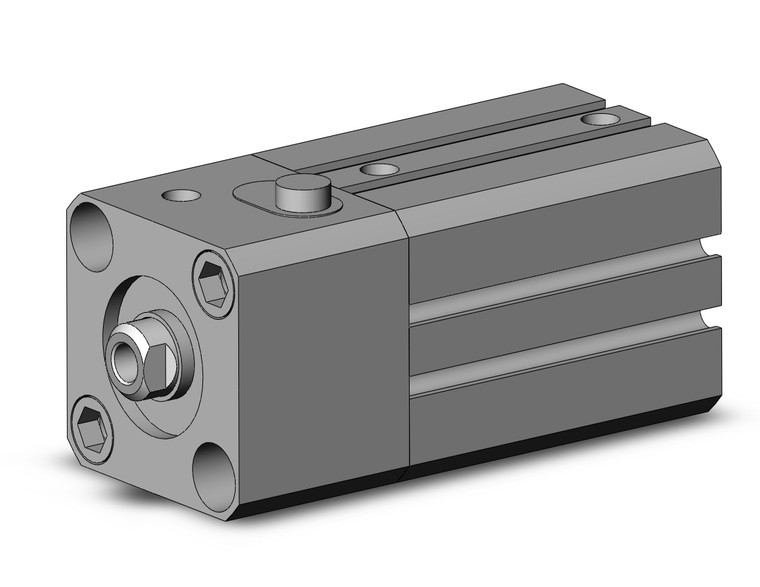

SMC CLQB20-30D-F Compact Cylinder W/Lock
- SKU:
- CLQB20-30D-F
- Condition:
- New
- Magnet:
- None
- Mounting:
- B (Through Hole)
- Bore Size:
- 20mm
- Thread:
- M5x0.8 (20-25 Bore)
- Stroke:
- 30mm
- Body Option:
- Standard
- Locking Direction:
- F (Forwarding Stroke Lock)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description

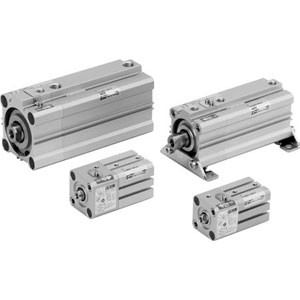

C(D)LQ, Compact Cylinder, Double Acting, Single Rod, With Lock
Compact cylinder series CLQ offers drop prevention when the pressure of air source is decreased or the residual pressure is released. The CLQ has a low profile design, with a compact lock unit. Available in 8 bore sizes ranging from 20 to 100mm, and is auto switch capable.
- Low profile with compact lock unit- Two types of mounting
- Locking is possible at any position within the entire stroke
- Locking direction is selectable
- Easy manual unlocking
