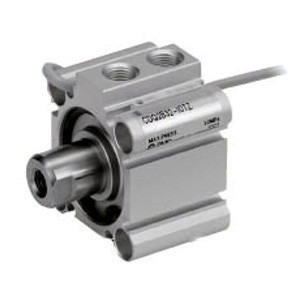

SMC CQ2B40-10SMZ Compact Cylinder
- SKU:
- CQ2B40-10SMZ
- Condition:
- New
- Magnet:
- None
- Mounting:
- B (Through Hole [Standard])
- Bore Size:
- 40mm
- Port Thread Type:
- Rc= 32-100 Bore
- Stroke:
- 10mm
- Action:
- S (Single Acting, Spring Return)
- Body Option:
- M (Rod End Male Thread)
- Auto Switch Groove:
- Z (Auto Switch Mounting Grooves)
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m or None in the Case of No Switch
- Number:
- 2 pcs. or None in the Case of No Switch
Description
C(D)Q2-Z, Compact Cylinder, Single Acting Single Rod
Standard single acting, single rod version of the CQ2 compact cylinder. The CQ2 single acting is available in bore sizes from 12mm to 50mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.
- Single acting, single rod, compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50
- Standard stroke range (mm): 5, 10, 20 Rc, NPT or G (32 to 100 bore)
- Auto switch capable
