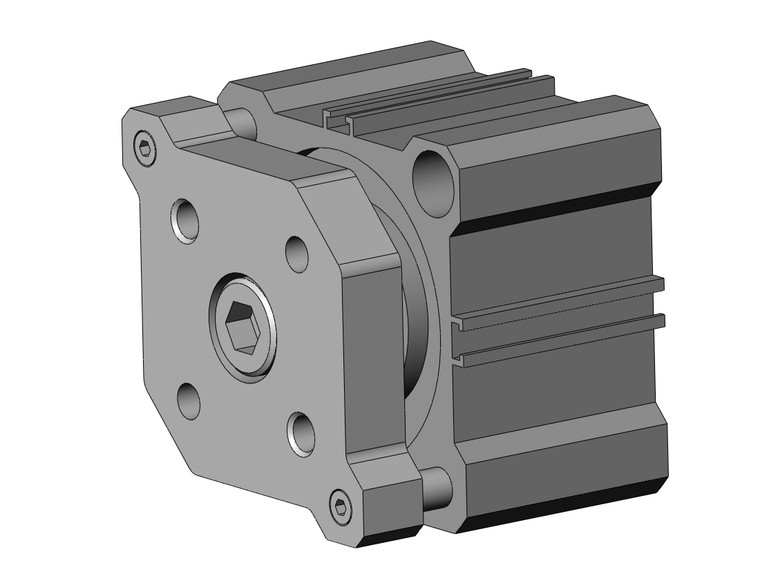

SMC CQMB50-10 Compact Cylinder W/Guide
- SKU:
- CQMB50-10
- Condition:
- New
- Availability:
- In stock: 1
- Magnet:
- None
- Mounting:
- B [Through Hole (Standard)]
- Bore Size:
- 50mm
- Port Thread:
- M Thread (12-25)
- Stroke:
- 10mm
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
C(D)QM, Compact Cylinder, Guide Rod Type
The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes. Non-rotating accuracy is 0.2 or less. Series CQM allows a workpiece to be mounted directly to the tooling plate. Auto switches are mountable/removable even when the plate is retracted.
- Guide rod type compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100
- Standard strokes (mm): 5 to 100
- 4 times the lateral load resistance of the CQ2K
- Non-rotating accuracy 0.2 or less
-
