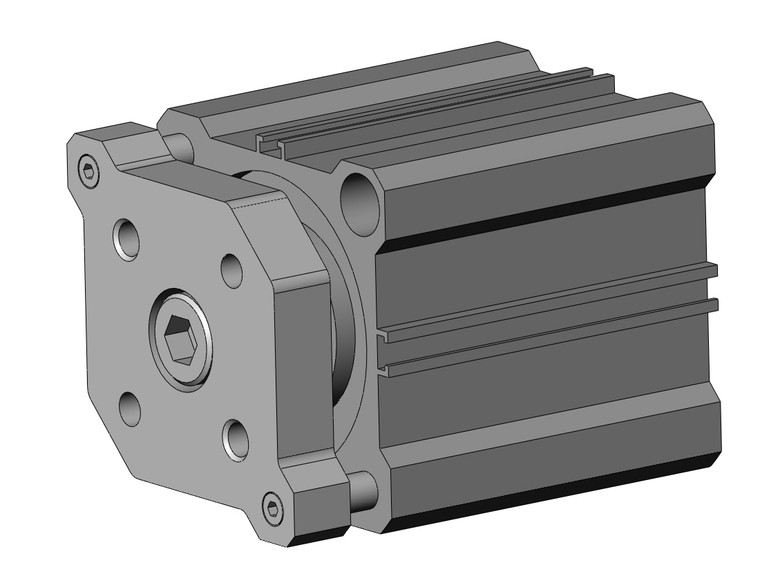

SMC CQMB50TF-40 Compact Cylinder W/Guide
- SKU:
- CQMB50TF-40
- Condition:
- New
- Availability:
- In stock: 94
- Thread Type:
- G
- Actuator Type:
- Compact, Guide Rod
- Mounting:
- Through Hole (Standard)
- Bore Size:
- 50mm
- Lead or Prewired Connector:
- 0.5m [Or None in the Case of No Switch]
- Stroke:
- 40mm
- Auto Switch:
- No Switch
- Magnet:
- None
- Auto Switch Qty:
- 2 pcs. [Or None in the Case of No Switch]
Description
C(D)QM, Compact Cylinder, Guide Rod Type
The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes. Non-rotating accuracy is 0.2 or less. Series CQM allows a workpiece to be mounted directly to the tooling plate. Auto switches are mountable/removable even when the plate is retracted.
- Guide rod type compact cylinder- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100
- Standard strokes (mm): 5 to 100
- 4 times the lateral load resistance of the CQ2K
- Non-rotating accuracy 0.2 or less
-
