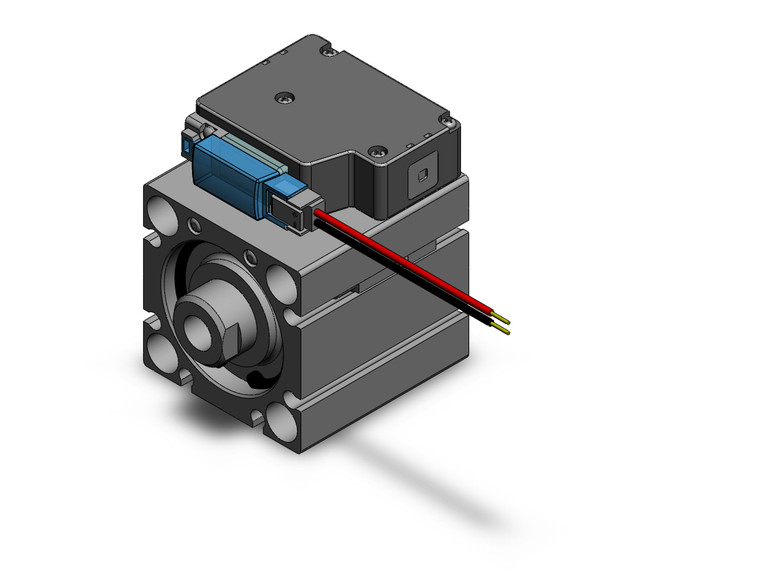

SMC CVQB32-15-M9NWLS-5MZP Compact Cylinder W/Valve
- SKU:
- CVQB32-15-M9NWLS-5MZP
- Condition:
- New
- Port Thread:
- 32 & 40 Bore: M5, 50 & 63 Bore Rc
- Piping:
- Axial
- Manual Override:
- Non-Locking Push Type
- Surge Voltage Suppressor:
- Light/Surge Voltage Suppressor
- Electrical Entry:
- M Plug Connector With Lead Wire
- Rated Voltage:
- 24 VDC
- Number:
- 1 pc.
- Lead Wire or Prewired Connector:
- 3m
- Auto Switch:
- M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal
- Option:
- Rod End Female Thread
- Stroke:
- 15mm
- Bore Size:
- 32mm
- Mounting:
- Through Hole
Description
CVQ, Compact Cylinder with Solenoid Valve
SMC series CVQ offers a compact cylinder and valve integrated for compactness. This series offers space, energy, and labor savings. Reducing the piping between the cylinder and valve offers approximately 50% reduction in air consumption. Choose from side and axial piping. The CVQ series is designed so that the D-M9* series auto switch can be mounted flush with the cylinder profile.
- Compact cylinder with attached valve- Space, energy, and labor savings
- Choose from side and axial piping
- Bore size (mm): 32, 40, 50, 63
- Stroke (mm): 5~100
