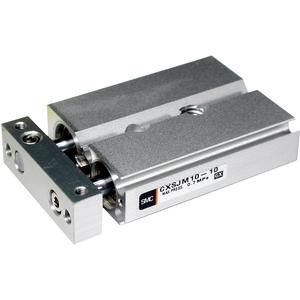

SMC CXSJL20-50-M9BSAPC Guided Cylinder
- SKU:
- CXSJL20-50-M9BSAPC
- Condition:
- New
- Bearing Style:
- L (Ball Bush Bearing)
- Bore Size:
- 20mm
- Port Thread:
- Bore 6-25= M Thread
- Bore 32:
- Rc
- Piping:
- Standard Porting
- Stroke:
- 50mm
- Auto Switch:
- M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal
- Lead Wire or Prewired Connector:
- SAPC (0.5m Cord Length, M8-3 Pin Connector)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
series cxs is available in six bore sizes and stroke lengths up to 100mm. this series is very compact and has a very accurate non-rotating specification. it is suited for accurate pick-and-place applications or light duty material handling. the cxs can be used with either reed or solid state switches. available in clean room versions.
- dual rod cylinder with air cushion
- slide bearing or ball bushing bearing
- bore sizes: 20mm, 25mm, 32mm
- standard strokes: 20-100mm
- thread types: m, rc, npt, g
- auto switches available
