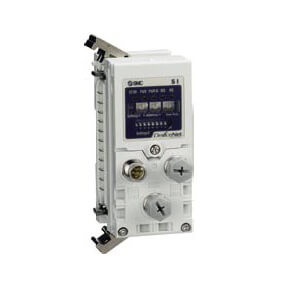

SMC EX600-SEN1 SI Unit, EtherNet/IP, 32-Output PNP, EX600 Fieldbus, IP67
SMC
$591.95
The SMC EX600-SEN1 is a EtherNet/IP SI (serial interface) unit for the SMC EX600 fieldbus system. It is the communication head unit for the valve manifold, controlling up to 32 solenoid outputs (PNP) over EtherNet/IP while reducing control wiring to a single network connection.
Key Specifications
| Platform | SMC EX600 fieldbus system |
| Protocol | EtherNet/IP |
| Function | SI unit (fieldbus communication / valve output control) |
| Solenoid outputs | Up to 32 |
| Output polarity | PNP (source) |
| Ports | Single-port |
| Compatible valves | SY, SV, VQC, S0700 (and JSY on current platforms) |
| Enclosure rating | IP67 (manifold assembly) |
| Operating temperature | -10 to 50 C |
Features
- EtherNet/IP connectivity consolidates valve manifold control onto one network node
- Reduces wiring, terminal blocks, and PLC output cards versus discrete solenoid wiring
- Full onboard diagnostics and programmable parameters for fast commissioning
- IP67-rated for on-machine mounting without an enclosure
Applications
Used to network SMC EX600-compatible valve manifolds in automated assembly, packaging, material handling, and machine-tool cells that run on a EtherNet/IP control architecture.
Automation Distribution is an authorized SMC distributor. Order the SMC EX600-SEN1 online, or contact our technical team for help selecting the right fieldbus configuration for your application.
- Protocol:
- EtherNet/IP TM
- Output Type:
- PNP(Negative Common)
- Version:
- When MJ Or En Or EC Or PN Is Selected
