SMC F-IS3000-02L1

(No reviews yet) Write a Review
SKU:
F-IS3000-02L1
MPN:
F-IS3000-02L1
Condition:
New
$62.60

Description

Pneumatic Pressure Switch Series Is3000 Can Be Used For Small Electrical Loads Of 10Ma Such As Relays And Programmable Controllers. Is3000 Has A High Frequency Operation Of 1 Cycle/Sec And A Long Life Of 10 Million Cycles Due To Piston Construction. Calibration Ranges From 0.1 To 0.7 Mpa.

View AllClose

Related Products

Related Products

SMC IS3000-02L1-X113

SMC IS3000-02L1-X113

$64.70

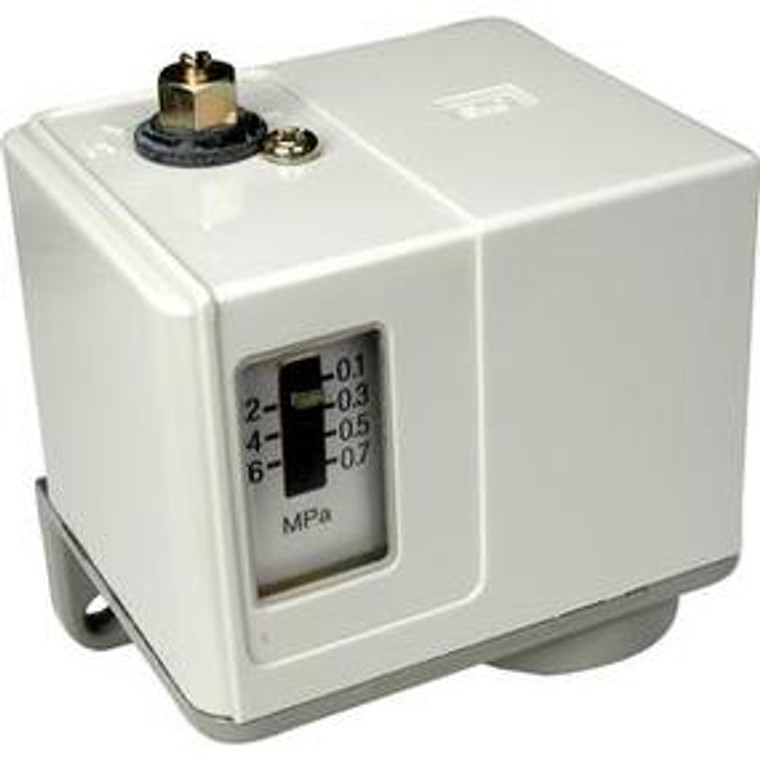

IS300 PRESSURE SWITCH DA IS300 1/4INCH PT VERSION PRESSURE SWITCH
IS3000-02L1-X113
SMC IS300-02 pressure switch***, IS300 PRESSURE SWITCH***

SMC IS3000-F02 Pressure Switch, Is Isg

$51.65
pneumatic pressure switch series is3000 can be used for small electrical loads of 10ma such as relays and programmable controllers. is3000 has a high frequency operation of 1 cycle/sec and a long...
IS3000-F02
SMC F-IS3000-02

SMC F-IS3000-02

$51.65
pneumatic pressure switch series is3000 can be used for small electrical loads of 10ma such as relays and programmable controllers. is3000 has a high frequency operation of 1 cycle/sec and a long...
F-IS3000-02
<h2>IS3000, Mechanical Pressure Switch, AC/DC</h2><p><h3>IS3000 is a mechanical pressure switch for applications where an electronic switch is unsuitable, or when it is desirable to trigger an electrical device when the set point is reached. This mechanical switch offers excellent hysteresis and repeatability. The circuit can be wired normally open or closed, with either AC or DC voltage and an optional micro load amperage. Optional indicator lights are also available. Any non-corrosive, non-flammable gas can be monitored. IP40 enclosure rating.</h3>- Mechanical pressure switch rated to 10 million cycles<br>- Set pressure range: 0.1 to 0.7 MPa<br>- Switch output is AC/DC circuit voltage for standard and micro industrial loads<br>- Minimum electrical load: 5 VDC/160 mA (standard) or 5 VDC /1mA (micro)<br>- Repeatability: 0.05 MPa<br>- Hysteresis: 0.05 MPa or less<br>- <p><a href="https://content2.smcetech.com/pdf/IS3000.pdf" target="_blank">Series Catalog</a>

SMC IS3000-02L1 Pneumatic Pressure Switch

$62.60
IS3000, Mechanical Pressure Switch, AC/DCIS3000 is a mechanical pressure switch for applications where an electronic switch is unsuitable, or when it is desirable to trigger an electrical device when...
IS3000-02L1
SMC IS3000-02L1-P Pneumatic Pressure Switch

SMC IS3000-02L1-P Pressure Switch, Is Isg

$133.60
IS3000, Mechanical Pressure Switch, AC/DCIS3000 is a mechanical pressure switch for applications where an electronic switch is unsuitable, or when it is desirable to trigger an electrical device when...
IS3000-02L1-P
