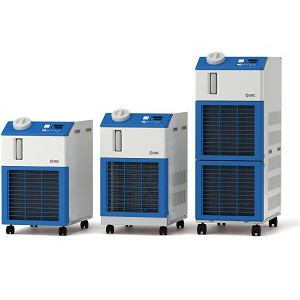

SMC HRSC012-AN-20-JT Thermo-Chiller - 1.3 kW CO2, Remote, Contact I/O, High Flow + High-Pressure Pump

SMC HRSC012-AN-20-JT Thermo-Chiller - 1.3 kW CO2, Remote, Contact I/O, High Flow + High-Pressure Pump

SMC
SKU:
HRSC012-AN-20-JT
Availability:
Factory stock
$6,290.00
Condition:
New
Current Stock:
Description
The SMC HRSC012-AN-20-JT combines air-cooled thermo-chiller performance with remote control, contact I/O, high flow pump, and high-pressure pump, delivering 1.3 kW cooling using CO2 refrigerant (GWP 1). PID ±0.1°C temperature stability, 5-40°C range. Air-cooled ?68 dB(A). NPT thread with Rc-NPT fitting. Single-phase 200-230 VAC (50/60Hz). Dual pump configuration for maximum circulation performance, remote control, contact I/O for system integration. Heating function, RS-232C/RS-485 communication, auto-restart, anti-freeze protection, alarm monitoring. Tap water, deionized water, or 15% glycol compatible. EPA, CARB, EU compliant. UL/CE certified.
Additional Information
Series:
HRSC
Cooling Capacity (60Hz):
1300 W (1.3 kW)
Heating Capacity (60Hz):
650 W
Refrigerant:
R744 (CO2)
GWP:
1
Cooling Method:
Air-cooled refrigeration
Temperature Control:
PID
Temperature Stability:
±0.1°C
Set Temperature Range:
5 to 40°C
Power Supply:
1-phase 200-230 VAC (50/60Hz)
Rated Current (50/60Hz):
5.0/5.1 A
Power Consumption (50/60Hz):
0.8/0.8 kW
Earth Leakage Breaker:
10 A / 30 mA
Pump Type:
High Flow + High Pressure
Pump Output:
200 W
Rated Flow (50/60Hz):
7/7 L/min
Max Flow (50/60Hz):
14/19 L/min
Tank Capacity:
Approx. 5 L
Circulating Fluid:
Water, 15% ethylene glycol aqueous solution
Circulating Fluid Port:
Rc1/2
Pipe Thread Conversion:
NPT (with Rc-NPT fitting)
Noise Level (50/60Hz):
60/61 dB(A)
Ambient Temperature:
5 to 40°C
Ambient Humidity:
30 to 70% (no condensation)
Max Altitude:
3000 m
Installation:
Indoor only
Refrigerant Charge:
0.43 kg
Weight (dry):
Approx. 51 kg
Communication:
RS-232C, RS-485
Remote Control:
Yes
Contact I/O:
Yes
Auto Fluid Fill (Option J):
Yes
Heating Function:
Yes
Auto Restart:
Yes
Anti-Freeze Protection:
Yes
Self-Diagnosis:
Yes
Compliance:
EPA, CARB, EU F-gas
Certifications:
UL, CE
Fluid Contact Materials:
Stainless steel, Copper (brazing), Brass, Alumina ceramic, Carbon, PP, PE, POM, FKM, EPDM, PVC, SiC
