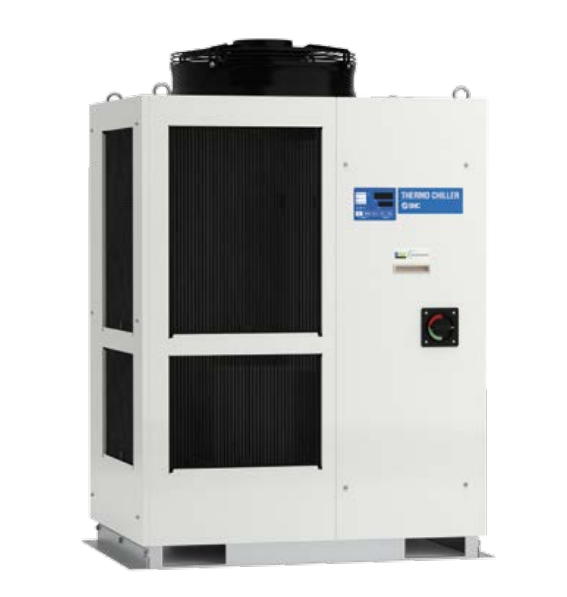

SMC HRSHF150-AN-20-AK Low GWP Refrigerated Thermo-Chiller | 15 kW Air-Cooled R32 Inverter with Auto Water Supply Kit
SMC
$24,475.00
The SMC HRSHF150-AN-20-AK is a 15 kW air-cooled refrigerated thermo-chiller with low GWP R32 refrigerant (GWP: 675) and integrated automatic water supply with kit. The auto water supply function uses a built-in solenoid valve to replenish circulating fluid as levels decrease, reducing operator intervention. Triple inverter technology delivers up to 53% energy savings. ±0.1°C PID-controlled temperature stability. 3-phase 200230 VAC. Low-noise 70 dB(A) design with outdoor installation capability (IPX4). RS-232C/RS-485 serial communication standard. Suited for laser machine tools, semiconductor support, and high-demand industrial cooling applications requiring unattended fluid level management.
- Series:
- HRSHF
- Model:
- HRSHF150-AN-20-AK
- Cooling Method:
- Air-Cooled Refrigeration
- Cooling Capacity:
- 15 kW
- Refrigerant:
- R32 (HFC)
- GWP:
- 675
- Control Method Method:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Circulating Fluid:
- Tap Water or 15% Ethylene Glycol
- Circulating Fluid Port Size:
- Rc1
- Power Supply:
- 3-Phase 200 to 230 VAC (50/60 Hz)
- Ambient Temperature Range:
- 5 to 40°C
- Communication:
- RS-232C/RS-485
- Contact I/O:
- 2 Inputs, 3 Outputs
- Inverter:
- Triple (Compressor, Fan, Pump)
- Auto Water Supply:
- Included with Kit (Option AK)
- Noise Level:
- 70 dB(A)
- Outdoor Rating:
- IPX4
- Pipe Thread:
- NPT
- Heating Function:
- Yes (Discharged Heat)
- Standards:
- UL, CE, RoHS
- Country of Origin:
- Japan
- Catalog:
- View
