Description

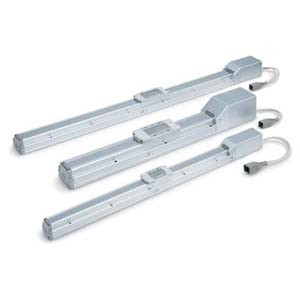

LEFS Electric Actuator, Slider Type, Ball Screw Drive
The original LEFS slider features an inline motor with a cover. Because the motor drives the ballscrew directly, additional cost of a belt and pulley system is avoided. The motor cover is taller than the load platform, so be aware of potential interference at the origin position.
- Body sizes: 16, 25, 32, 40- Maximum work load: 60 kg
- Maximum speed: 1200 mm/s (H lead, step motor, size 25 or larger)
- Stroke range: 50 to 1000 mm in 50 mm increments
- Positioning repeatability: 0.02 mm
- Motor types: high load step motor or high speed servo motor
-
Additional Information
Accuracy: |
Basic Type |
Size: |
25 |
Motor Mounting Position: |
In-line |
Motor: |
A [Servo Motor (24 VDC)] |
Lead Screw: |
B (Size 16= 5mm, Size 25= 6mm, Size 32= 8mm, Size 40= 10mm) |
Stroke: |
400mm |
Motor Option: |
w/o Lock |
Actuator Cable: |
Without Cable |
Actuator Cable Length: |
Without Cable |
Controller: |
Without Controller |
I/O Cable Length: |
Without Cable |
Communication Plug Connector: |
None |
Controller Mounting: |
Screw |
