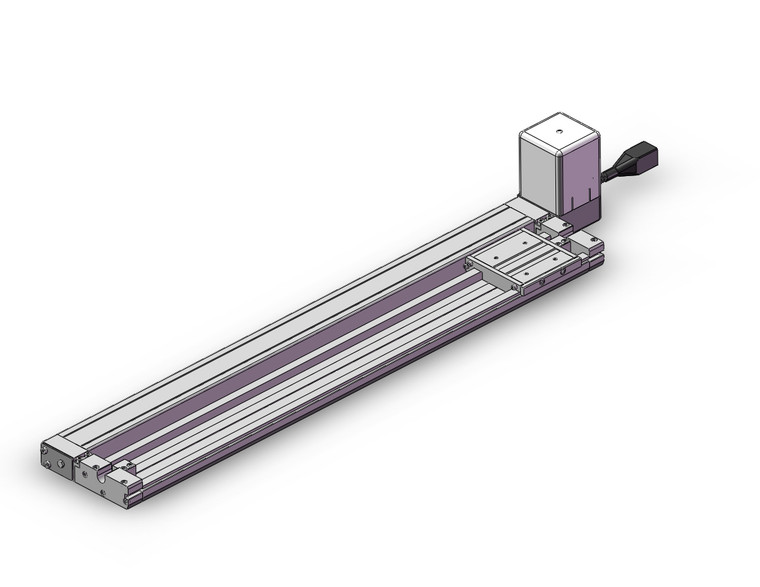

SMC LEMC25T-500 Electric Actuator

SMC LEMC25T-500 LEMC Series Electric Actuator/Low Profile Slider Type Cam Follower Guide Type Step Motor (Servo 24 VDC)

SMC
SKU:
LEMC25T-500
Availability:
Factory stock
$1,100.00
Condition:
New
Current Stock:
Description

SMC LEMC25T-500 - LEMC Electric Cylinder, 25mm, 500mm Stroke

The SMC LEMC25T-500 is an electric actuator, 25mm frame, 500mm stroke. Programmable positioning with step or servo motor drive.

Key Features & Specifications

  • Electric actuation - programmable position, speed, acceleration, and force
  • 24VDC step/servo motor - energy-efficient with precise positioning
  • Compact design - minimized height for space-constrained layouts
  • Ball screw or belt drive - matched to application requirements
  • Controller compatible - works with SMC LECP/JXC controllers
  • Clean series compatible
  • Size: 25mm | Stroke: 500mm | Electric

Typical Applications

Automated assembly, dispensing, and compact positioning systems.

Manufactured by SMC Corporation.

Additional Information
Size:
25
Motor Mounting Position:
Top Mounting
Lead:
48 mm
Stroke:
Stroke 500 mm
Motor Option:
Without Lock
Actuator Cable Type:
Without Cable
Actuator Cable Length:
Without Cable
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
