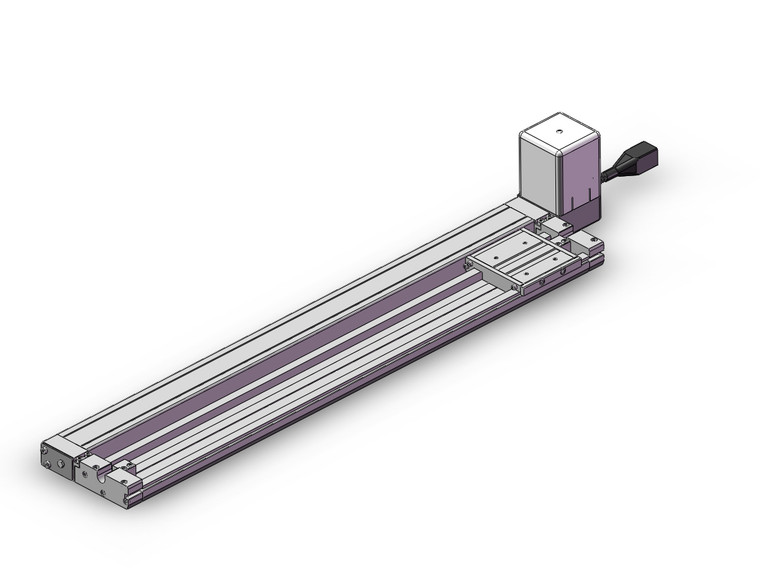

SMC LEMC25T-500-S32P3 LEMC Series Electric Actuator/Low Profile Slider Type Cam Follower Guide Type Step Motor (Servo 24 VDC)
SMC
$1,410.00
The SMC LEMC25T-500-S32P3 is a versatile electric actuator from the LEMC Series, designed with a low profile and low center of gravity, making it ideal for applications requiring compact and efficient motion control. With a table height of just 28 mm, this actuator is perfect for tight spaces. It offers high maintainability and can be combined with various guides to suit different needs. The motor mounting position is flexible, allowing for above or below, right or left configurations. For enhanced functionality, a solid state auto switch can be mounted for limit and intermediate signal confirmation. The actuator provides selectable controllability, offering complete control similar to an air cylinder with up to 12 point intermediate stops. Position setting is simplified through easy value input. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, ensuring seamless integration into your system.
- Size:
- 25
- Motor Mounting Position:
- Top Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 500 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- LECP2 Program Less Type (With Stroke Study) PNP
- I/O Cable Length, Communication Plug:
- 3 m
- Controller Mounting:
- Screw Mounting
